Building Construction Paper 1, May/June. 2012
Questions: 1 2 3 4 Main
General Comments
Strength
Weakness/Remedies
Specification
Question 3

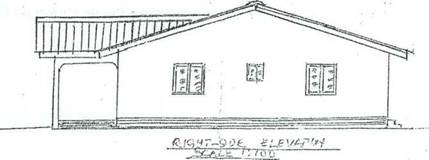

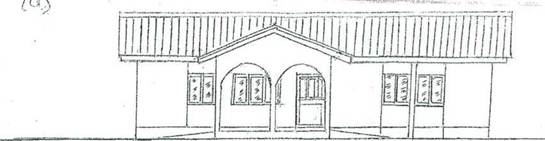

To a scale of 1:50, draw a detailed section A - A of the building from the foundation to the roof.Draw to a scale of 1:100, the detailed floor plan of the building.

_____________________________________________________________________________________________________
Observation

Most candidates were able to:
show the glazed metal door and sliding windows with the conventional symbols;
represent correctly, the ramps to the car park and the threshold steps to the rear verandah.
However, they were unable to:
indicate the ground and floor levels;
show by geometrical construction, the semi-circular arches;
show the recessed wails and the car park roof gable.
The expected response to question 3 is as shown on the next page.


Buil121mq
J^QtLL-^ik V/\ >' Qa^-s ?;.Too

Build

391
