Building Construction Paper 1, May/June. 2012
Questions: 1 2 3 4 Main
General Comments
Strength
Weakness/Remedies
Specification
Question 4

Draw to a scale of 1:20, the detailed section B - B from ground level to the roof.

_____________________________________________________________________________________________________
Observation

Some of the candidates were able to show the constructional details of the ground floor, doors and windows, including that of the car-park roof structure.
However, they failed to show the:
car-park concrete ramp details; eaves-boarding construction details; walls in section with 45° hatch lines; rendering to the walls in section.

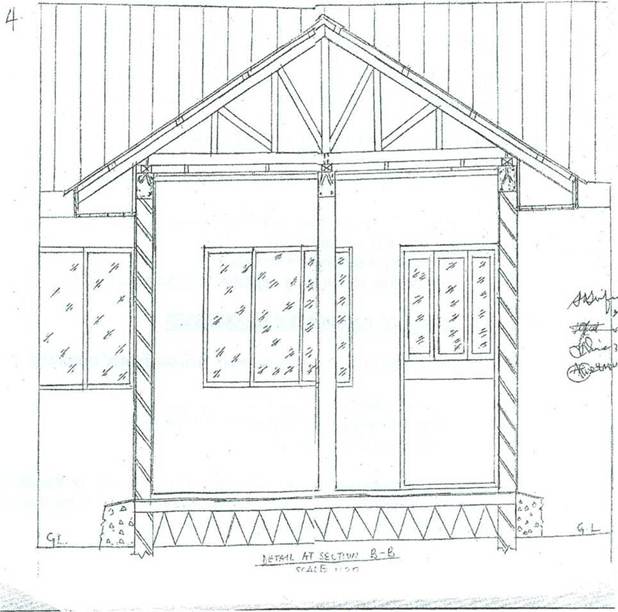

The expected response to question 4 is as shown on the next page.
