Building Construction Paper 1,Nov/Dec. 2012
Questions:   1 2 3 4   Main
General Comments
Weakness/Remedies
Strength
Specifications





Question 1

To a scale of 1:50, draw a section X – X of the building from the foundation to roof.



_____________________________________________________________________________________________________
OBSERVATION

Most candidates were able to:

-           produce the drawing to the scale specified;
-           represent the building elements with appropriate conventional symbols.

However, majority of the candidates:

-           showed wide-strip foundation instead of ordinary strip foundation;
-           failed to hatch the walls shown in section;
-           mis-represented the doors and windows.

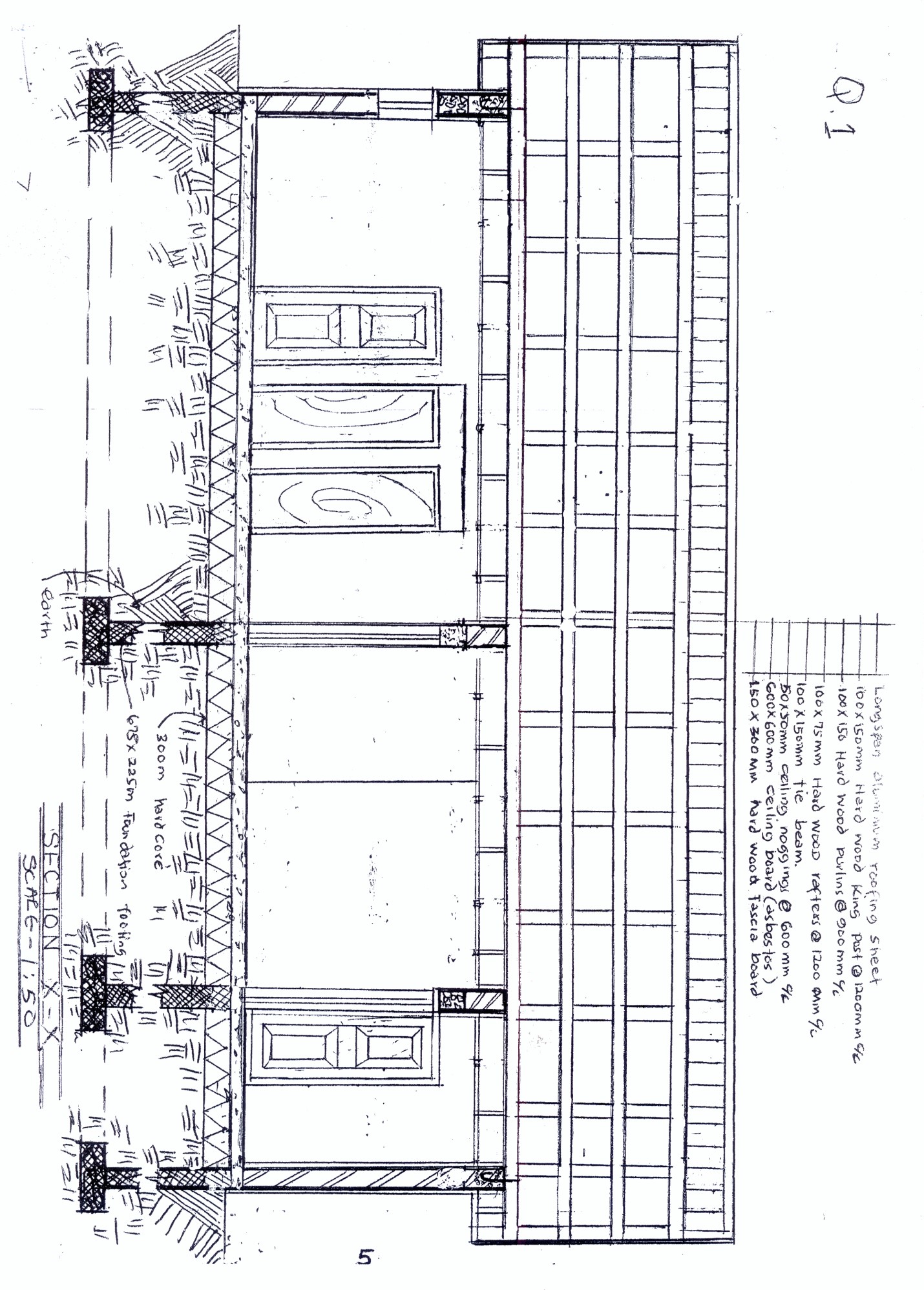

The expected response to question 1 is as given below:
