Building Construction Paper 1,Nov/Dec. 2012
Questions:   1 2 3 4   Main
General Comments
Weakness/Remedies
Strength
Specifications





Question 2

Draw to a scale of 1:100, the detailed floor plan of the building.



_____________________________________________________________________________________________________
OBSERVATION

Most candidates were able to:

            -           produce the detailed floor plan to scale;
            -           lay out the walls properly;
            -           indicate the doors’ openings with appropriate symbols;
-           dimension the plan correctly.

However, they failed to:

-           partition the windows into bays as specified;
-           indicate the position of the concrete columns;
-           show the sectional line X – X;
-           show the threshold steps for the verandah and kitchen doors.

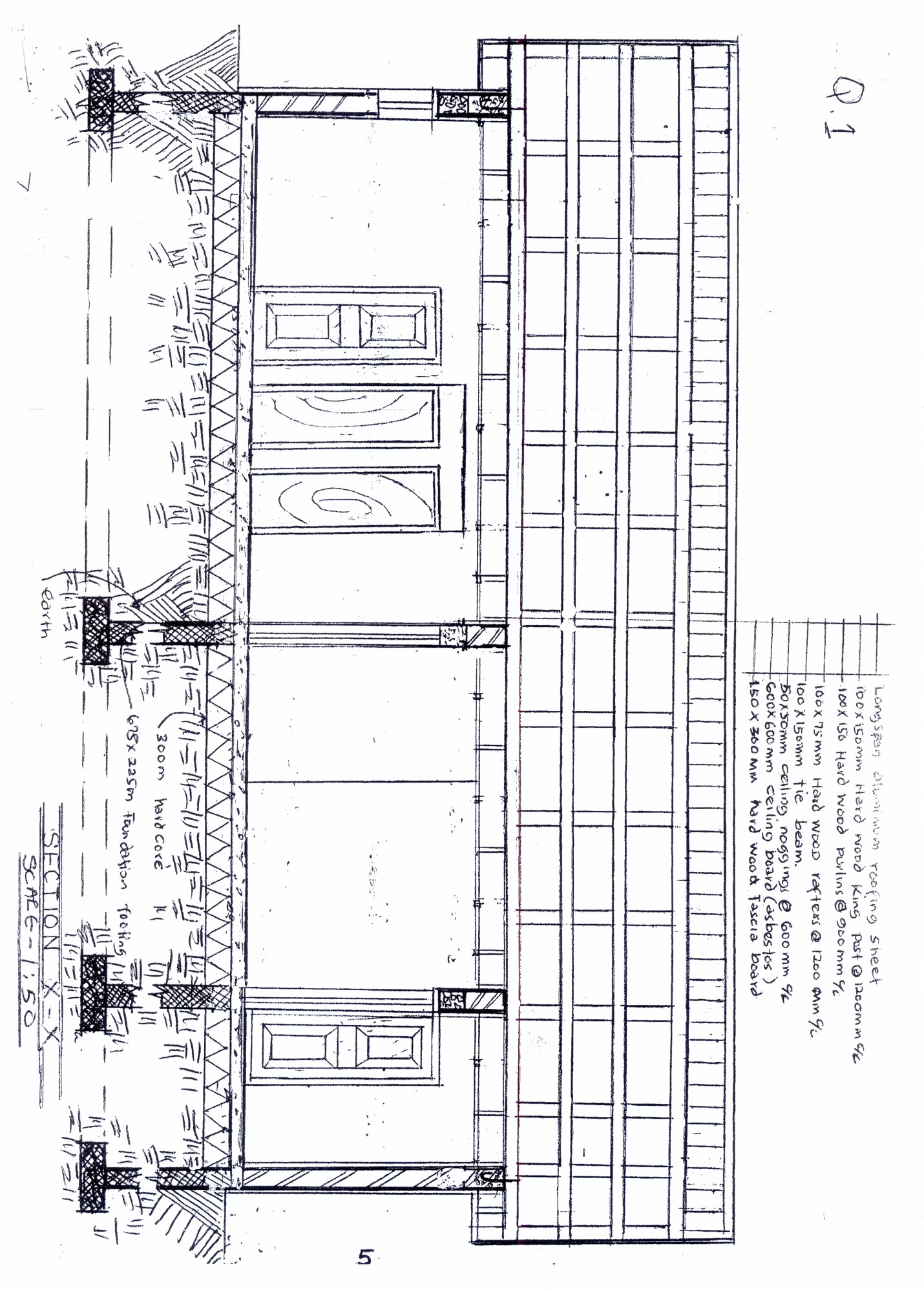

The expected response to question 2 is as given below:
