Building Construction Paper 1,Nov/Dec. 2012
Questions:   1 2 3 4   Main
General Comments
Weakness/Remedies
Strength
Specifications





Question 3

Draw to a scale of 1:100, the following views:

  1. front elevation;
  2. right side elevation.
_____________________________________________________________________________________________________
OBSERVATION

Most candidates were able to:

-           draw both elevations to the required scale;
-           show the threshold steps where required;
-           represent the fascia boards and barge boards at the eaves level.

However, they failed to:

-           distinguish the ground level from floor level;
-           show the door and window types (in elevation) correctly;
-           adhere strictly to the specified roof pitch.

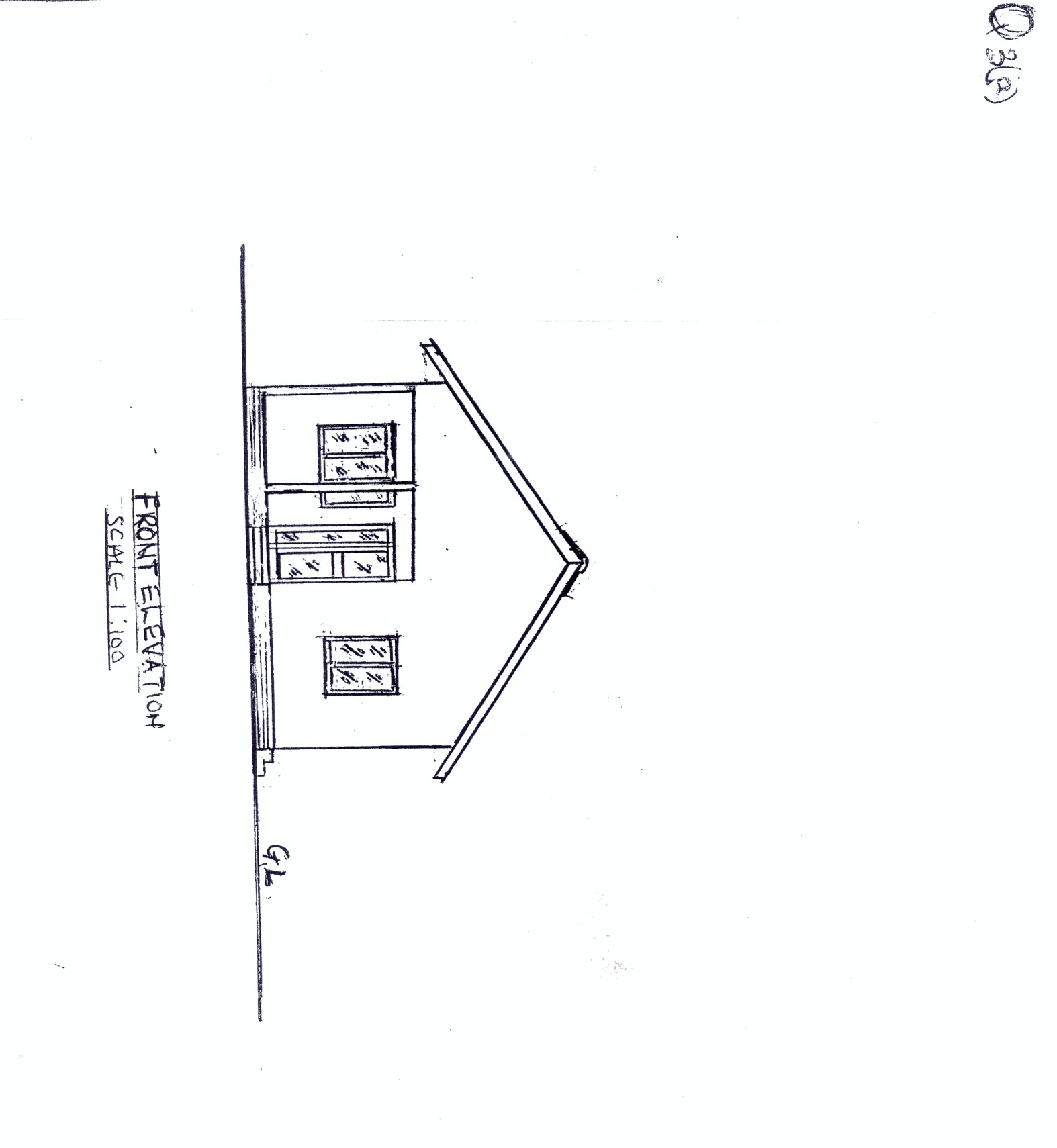

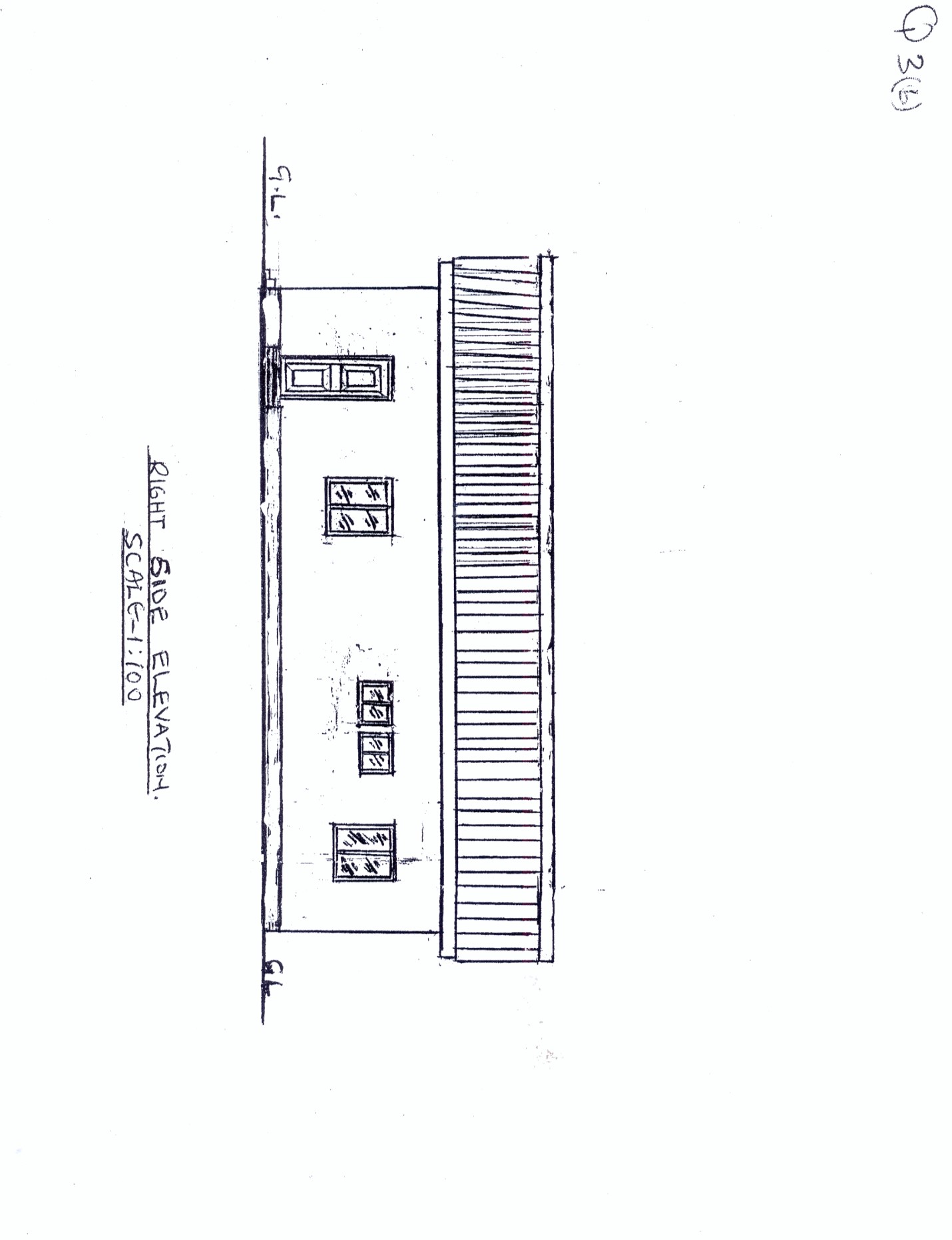

The expected response to question 3 is as given below:
