Building Construction Paper 1, May/June. 2013
Questions:   1 2 3 4   Main
General Comments
Strength
Weakness/Remedies
Specification
Question 2

To a scale of 1 : 100, draw the detailed floor plan of the building.

_____________________________________________________________________________________________________
Observation

Most candidates were able to:

-           position the wardrobes correctly;
-           dimension the various room spaces properly;
-           indicate the doors with their appropriate symbols.

However, few candidates failed to:

-           label the room spaces correctly;
-           produce the detailed floor plan to scale 1:100;
-           lay out the walls properly at the corners and junctions.

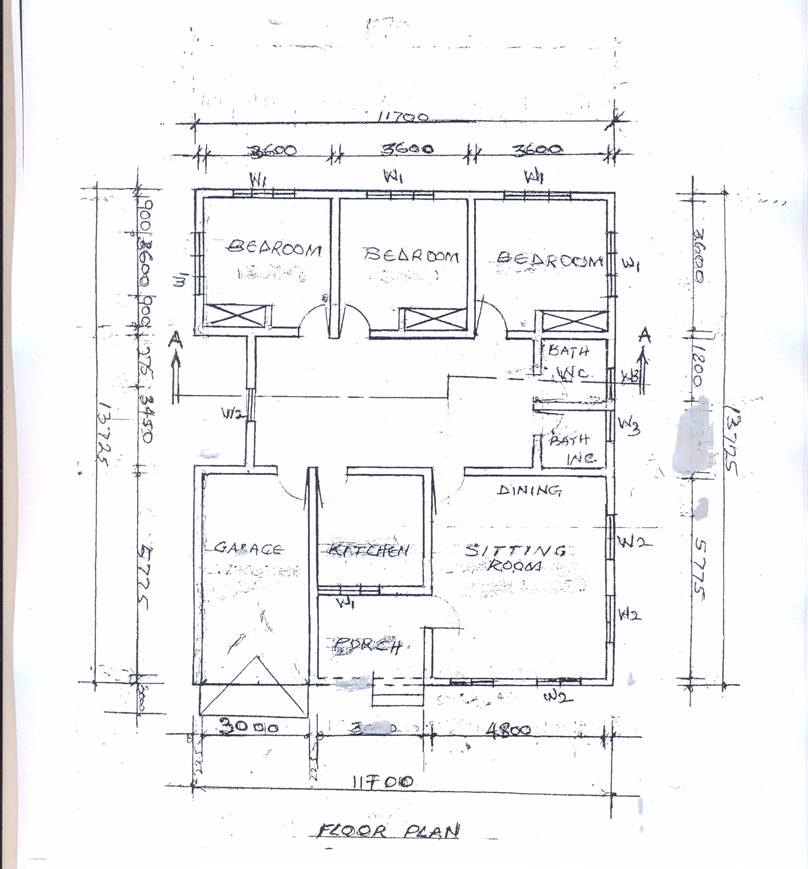

The expected response to question 2 is as shown below:
