Building Construction Paper 1, May/June. 2013
Questions:   1 2 3 4   Main
General Comments
Strength
Weakness/Remedies
Specification
Question 4

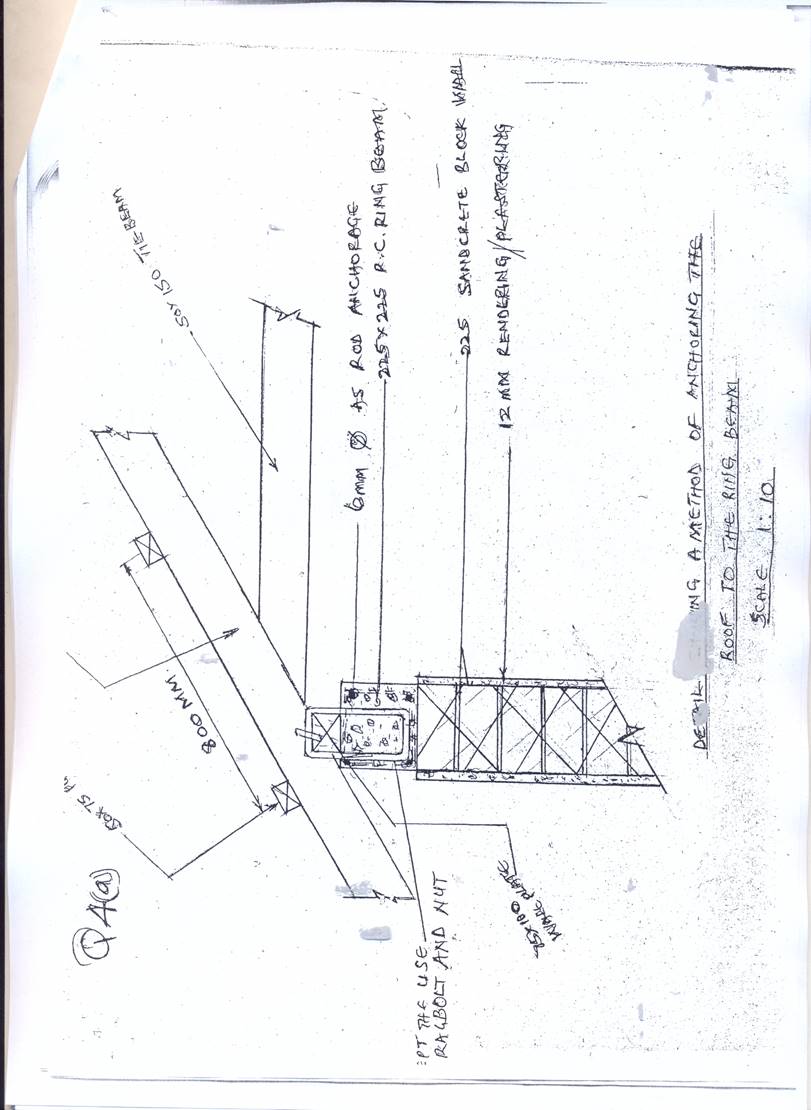

  1. Draw to a scale of  1: 10, the detail showing a method of anchoring the roof to the ring beam.

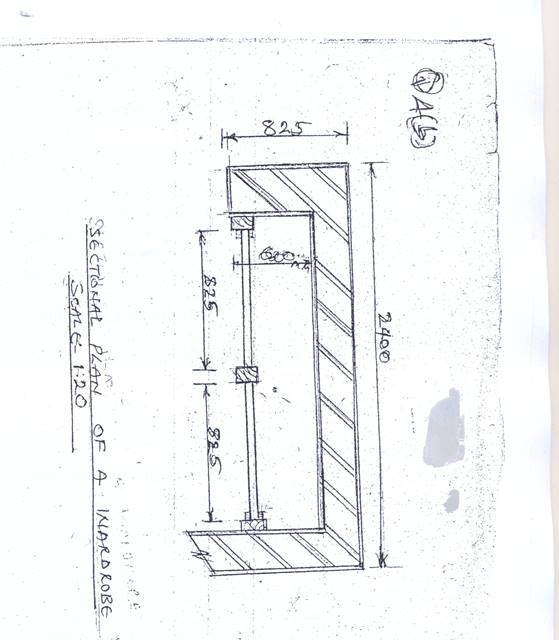

Draw to a scale of 1 : 20, the sectional plan of the wardrobe



_____________________________________________________________________________________________________
Observation

Few candidates were able to:

-  indicate the correct sizes of the elements shown;
-    show the method of using rag bolt or metal strap in anchoring roof to the ring beam;
-    dimension the sectional plan of the wardrobe correctly.

However, majority of the candidates failed to show the:

-  steel reinforcement in the reinforced concrete ring beam;
-    bed joints of the sandcrete blockwall drawn in section;
-   12mm rendering/plastering to the sandcrete blockwall.

The expected response to question 4 is as given below:
