building construction Paper 3 May/June 2015

Question 2

To a scale of 1:100, draw the detailed floor plan of the building.

Observation

Majority of the candidates did well by:

-           having the wall lines laid-out properly at the corners and junctions;
-           identifying correctly, the various room spaces;
-           drawing the plan to the specified scale of 1:100.

However, some for them failed to:

-           represent the doors and windows on plan with the appropriate conventional symbols;
-           dimension the drawing;
-           indicate the drawing title and scale.

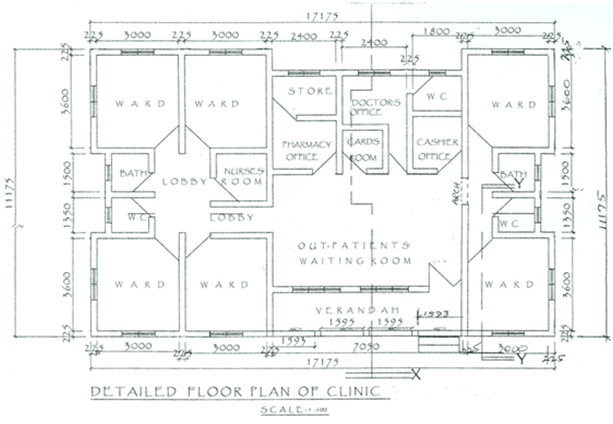

The detailed floor plan of the clinic is as shown below.
