building construction Paper 3 Nov/Dec 2015

Question 2

To a scale of 1:100, reproduce the plan of the building.

Observation

Most candidates were able to:

-           laid-out the wall lines properly;
-           show the beams and columns on plan correctly.

However, majority of them failed to:

  • produce the detailed floor plan to scale of 1:100;
  • dimension their drawings;
  • label the rooms spaces.



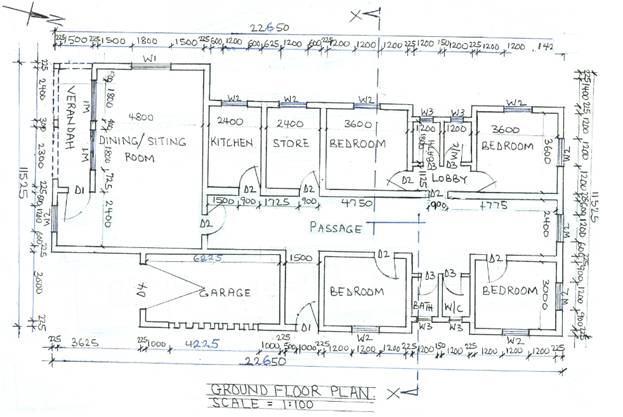

The detailed floor plan of the clinic is as shown below.
