building construction Paper 3 Nov/Dec 2015

Question 4

Prepare the doors’ and windows’ schedule using a scale of 1:50.

Observation

The candidates did well by:

-           describing the doors and windows correctly;
-           stating the various sizes of the doors and windows.

However, majority of them were not able to:

-           indicate the quantity of each door and window types;
-           produce the sketches of the doors and windows;
-           draw the elevations to scale 1:50.

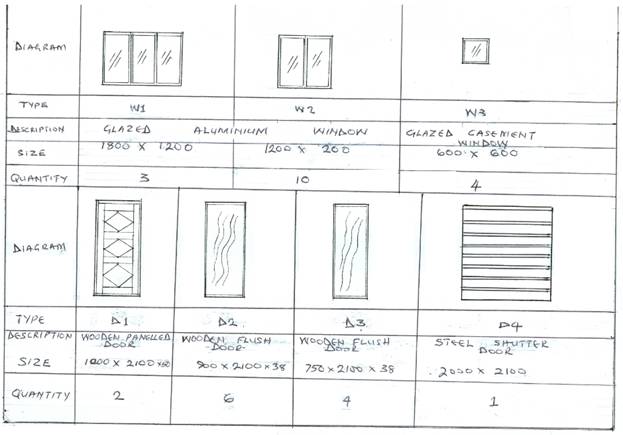

The expected response to question 4 is as shown below:
