building construction Paper 3 May/June 2015

Question 3



Draw to a scale of 1:100, the following elevations of the building:

(a)        front elevation;
(b)        right side elevation.

Observation

The candidates did well by:

-           showing the columns and arches properly;
-           representing the barge boards and eaves projection correctly.

However, a good number of the candidates failed to:
-           show the right type of doors and windows;
-           distinguish between the ground level and floor level;
-           show the wall recesses and ridge – cap.

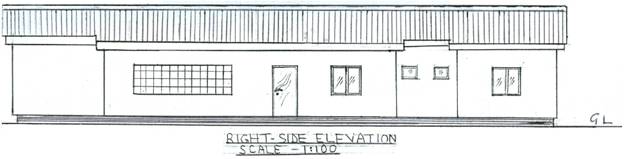

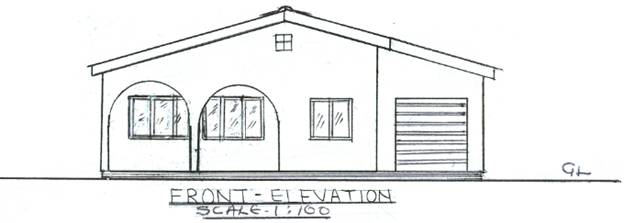

The respective front and right side elevation of the clinic is as shown below:
