SPECIFICATIONS

FOUNDATION:  675 x 225 concrete strip foundation laid to a depth of 900 below the ground level.

• FLOOR:
  • Earth filling.
  • Hardcore 300.
  • Concrete slab 150.
  • Mortar screed 25.


• STAIRCASE:
  • Reinforced concrete stair.
  • Width 750;
  • Rise (riser) 150;
  • Going (tread) 225;
  • Waist 100;
  • Total rise 3000;
  • Total going 2025.


• WALLS: All walls are 225 sandcrete hollow block walls except the stair enclosimg wall which is 150 thick.


• BEAMS/LINTELS AND COLUMNS: 225 x 225 reinforced concrete.


• ARCHES: All arches are semi-circular reinforced concrete type.
  • Arch 1:
    • Height – 2400.
    • Span – 2540.
  • Arch 2:
    • Height – 2400.
    • Span – 2530.
  • Arch 3:
    • Height – 2400.
    • Span – 1200.


• DOORS:
  • D1 – 1200 x 2100 glazed aluminium door.
  • D2 – 900 x 2100 panelled wooden door with 100 x 50 hardwood timber frame.
  • D3 – 750 x 2100 panelled wooden door with 100 x 50 hardwood timber frame.


• WINDOWS: All windows are glazed aluminium sliding type.
  • W1 – 1200 x 1200 (3-bays).
  • W2 – 1200 x 1200 (2-bays).
  • W3 – 600 x 600 (2-bays).


• WARDROBE: 1575 X 600 X 3000.
  • Cloth compartment - 1575 x 940
  • Box compartment - 1575 x 1935


• THRESHOLD STEPS: 1575 X 600 X 3000.
  • Width – 1500.
  • Tread – 300
  • Rise – 150.


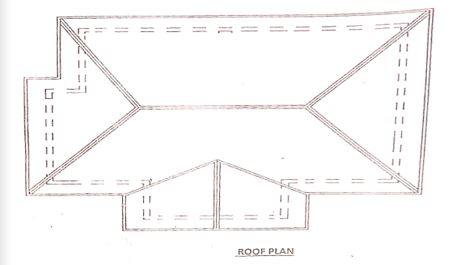

• ROOF: Double pitched timber roof with long span aluminium roofing sheets.
  • Eaves projection – 750
  • Pitch - 15º
  • Height from ground floor to ceiling – 3000.













Question 1

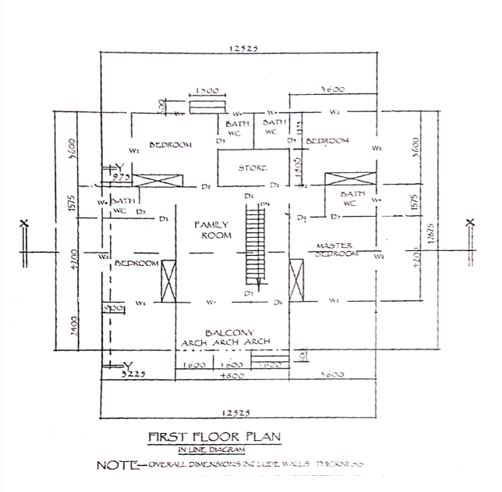

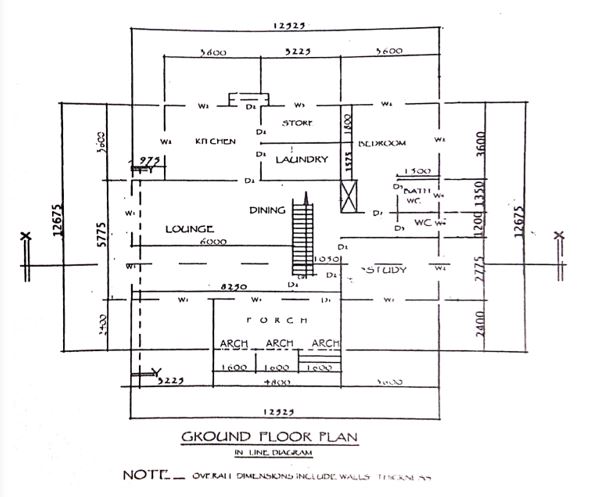

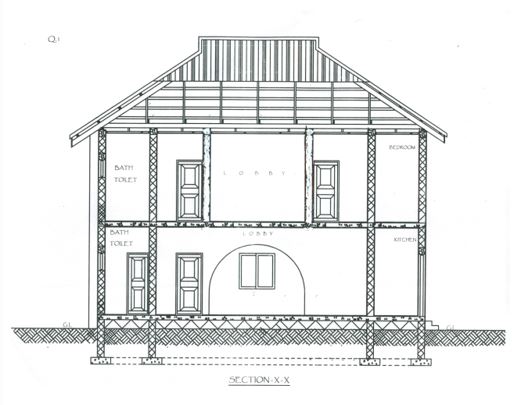

To a scale of 1:50, draw the detailed section X – X of the building from the foundation toroof.
