building construction Paper 3 WASSCE (PC 2ND), 2019




Question 3

To a scale of 1:100, draw the front elevation of the building;:

Observation





The candidates did well by;


- distinguishing the ground level from the ground floor level;
- representing the glazed aluminuim sliding window correctly;
- showing the main roof and balcony roof in elevation.



However some of the candidates failed to:


- show the correct type of doors and windows;
- show the balutrade at the entrance porch and balcony of the building;
- construct geometrically, the semi-circular arches;
- indicate the drawing tittle.

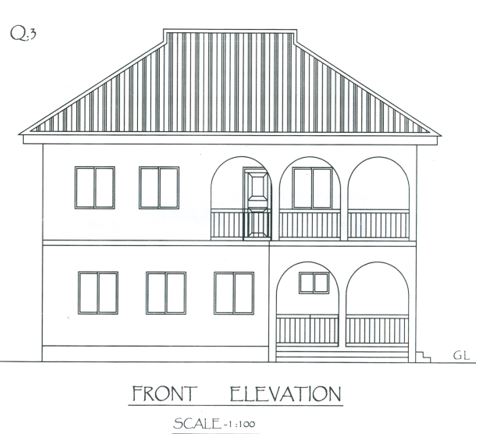

The expected response to  question 3 is as given below:


front elevation;
