building construction Paper 3 WASSCE (PC 2ND), 2019




Question 2

Draw to a scale of 1:100, draw the detailed floor plan of the building.

Observation





Majority of them did well by:

- laying-out properly wall lines at corners and junction

- - showing the various room spaces on plan accurately;.
- having the wardrobes correctly represented;
- showing the staircase with the direction of ascent.



However, some of them failed to:


- show the door conventional symbols;
- indicate the sectional lines X – X and Y- Y on the drawing;
- label and dimension their drawings.

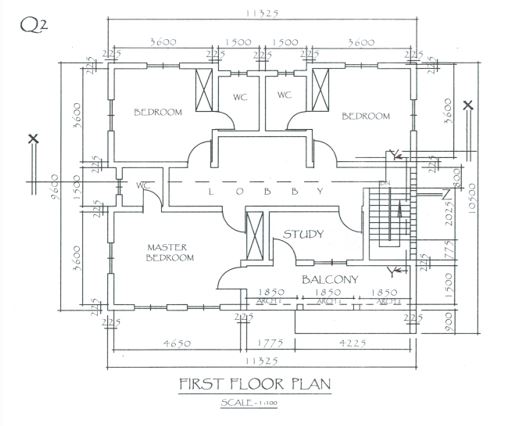

The expected response to  question 2 is as given below:
