Technical Drawing Paper 2, Nov/Dec. 2012
Questions: 1 2 3 4 5 6 7 8 9 10 Section B 1 2 Main
General Comments
Weakness/Remedies
Strength



Section B
  1. BUILDING DRAWING

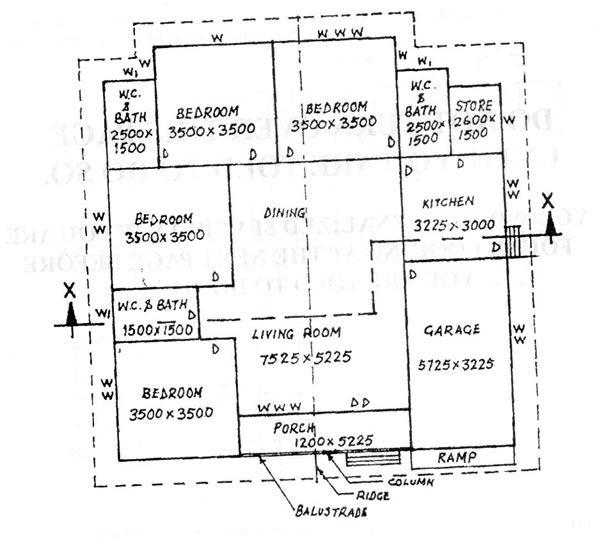

    1.         The sketch plan of a bungalow is shown below.
                Study the specifications given and answer the questions that follow.

Specifications

Foundation:   750 x 225 concrete strip laid over 50 concrete blinding at 750 below ground level.
Walls:              225 thick with 12 screed on both sides.
Floor:              150 concrete slab at 600 above ground level;12 mortar screed;150 hardcore.
Doors:             DD-1800 x 1900 x 38 hardwood panel door;
                        D-900 x 1900 x 38 flush wooden; all in 100 x 50 timber frame
                        Garage Door-roller shutter
Windows:       all louvre, in 100 x 50 timber frame;
                        W1-600 x600;
                        W2-600 x 750.
Lintel:              225 x 225 reinforced concrete at 1950 above finished floor level.
Ceiling:           timber joist 50 x50 at 1200 centres;2900 above finished floor level.
Roof:               150 double pitch gabled with corrugated sheet;
                        timber trusses 150 x 100 at 1200 centres;
                        timber purlins 75 x 50 at 900 centres;
                        eaves 600 with 300 timber fascia board.
Porch:             225 x225 reinforced concrete column; metal pipe balustrade 1100 high.
Steps:             150 riser; 200 tread.

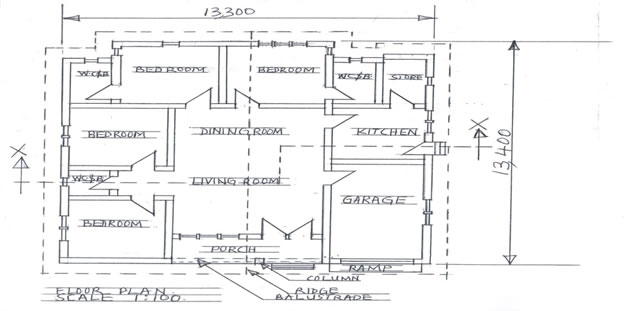

            (a) (i)  Plan

                                    Candidates were expected to:

  1. draw to scale 1:100;
  2. draw the outline use appropriate doors and windows symbol;
  3. draw 21 window;
  4. draw 13 doors;
  5. draw the column, balustrade and Ridge;
  6. draw the beam;
  7. draw 13 rooms and  identify them;
  8. draw the cutting plane X – X.
_____________________________________________________________________________________________________
Observation

The solution is shown below

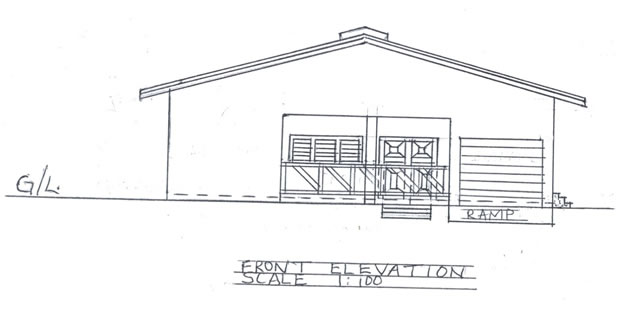

(b)       (ii)        Front Elevation

                      Candidates were expected to:

  1. draw to scale 1:100;
  2. draw the ground line and the finished floor;
  3. draw the steps, column, windows, doors and balustrade;
  4. draw the walls, beam, and garage door;
  5. draw the roof, 2 eaves and the ridge cover.

The solution is shown below

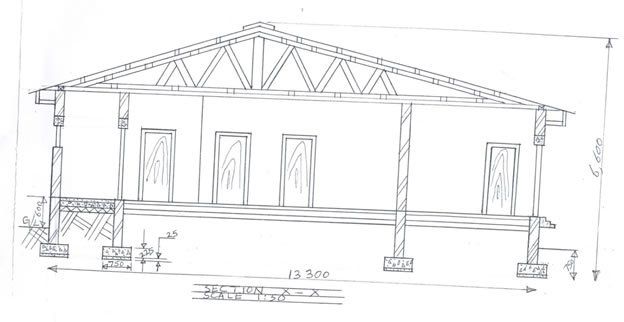

(c)        (iii)       Section X- X

                                    Candidates were expected to:

  1. draw to scale 1:50;
  2. draw 4 foundation footings with blinding;
  3. draw 4 foundation walls;
  4. draw the earth filling, hard core, concrete slab, ground line and the finished floor;
  5. use appropriate symbols for doors and windows;
  6. draw the required number of window, door, lintel and wall plates;
  7. draw ceiling cover of noggins;
  8. show the roof truss;
  9. draw the fascial boards, roof cover, ridge cap and eave projection;

The solution is shown below
