Technical Drawing Paper 2, Nov/Dec. 2012
Questions: 1 2 3 4 5 6 7 8 9 10 Section B 1 2 Main
General Comments
Weakness/Remedies
Strength



Question 4

  1. Sketch in the boxes below, the convention for representing each of the materials indicated.

_____________________________________________________________________________________________________
Observation

Candidates were expected to:

  1. sketch conventional representation of a timber;
  2. sketch conventional representation of an insulation;
  3. sketch a conventional representation of a metal;
  4. sketch a conventional representation of water.

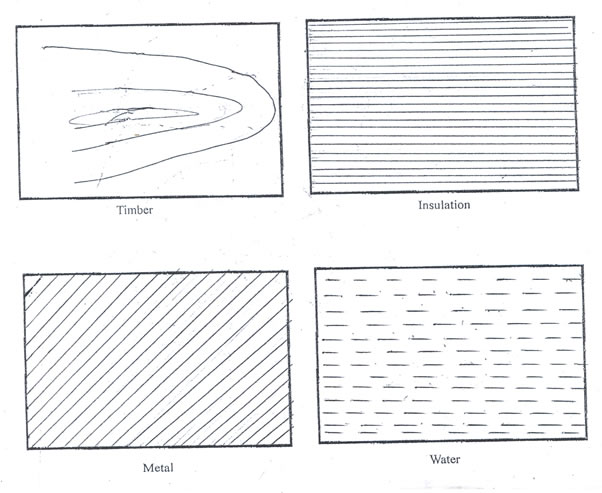

The solutions are shown below
