Question 7

  1. Draw the sectional view of a riveted lap joint in the box given below










_____________________________________________________________________________________________________
Observation

Candidates were expected to:

  1. draw the sectional view;
  2. draw the rivet (with the centre line);
  3. section different position correctly.

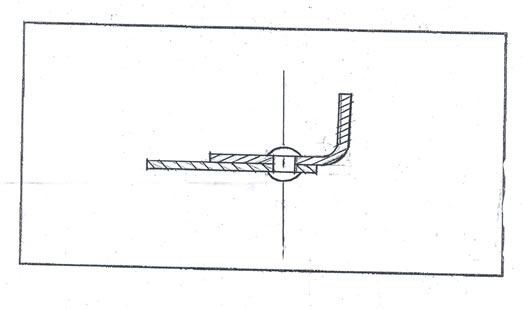

The solution is shown below
