Question 3

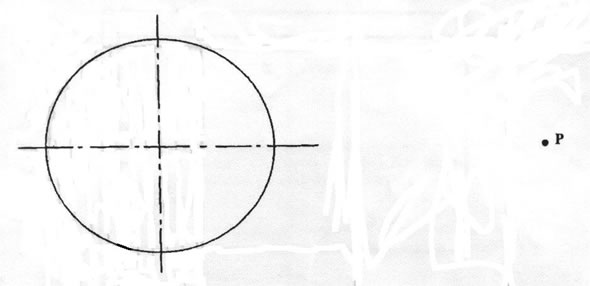

  1. Construct a tangent to the circle given below from point P.
_____________________________________________________________________________________________________
Observation

Candidates were expected to:

  1. extend line O to P;
  2. bisect line OP;
  3. use X as centre to draw a semi-circle on OP;
  4. draw a line from P through Y to get the tangent.

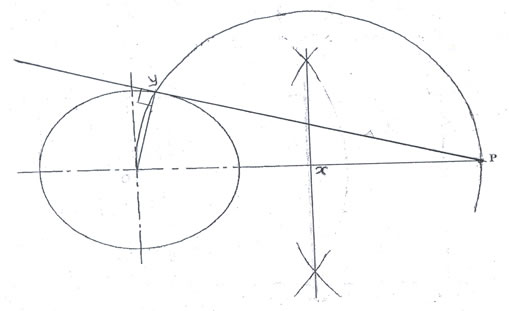

The solution is shown below
