Question 5

  1. Sketch in the boxes below, the convention for representing each of the materials indicated.

_____________________________________________________________________________________________________
Observation

Candidates were expected to:

  1. draw horizontal lines from the given points;
  2. draw the horizontal axis 1 – 10;

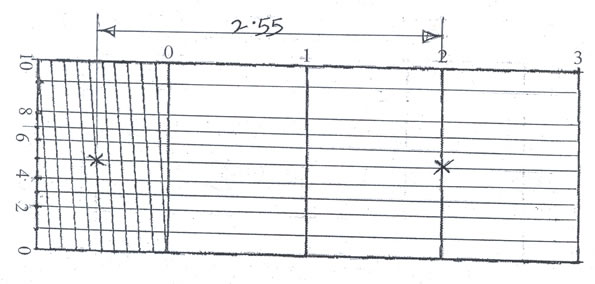

  3. indicate the given distance (2.55). The solution is shown below
