Question 3
- State one reason for wearing goggles while operating a drilling machine.

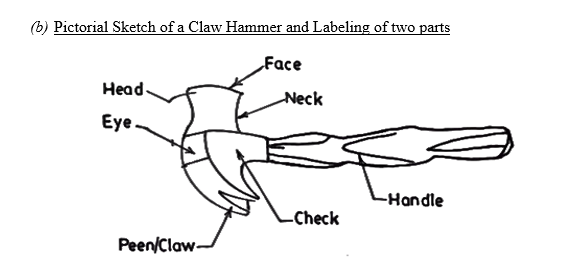

- Make a freehand sketch of the pictorial view of a claw hammer and label two parts.
- Name the special purpose tool used for each of the following operations:
- levelling the bottom of trenches;
- planing small through chamfers.
This question was attempted by few candidates and their performance was good. Many candidates could not make a freehand sketch of the pictorial view of a claw hammer in Question 4 (b) and naming of the special purpose tools used for the listed operations in Question 4 (c).
The expected answers are as follows:
- The Special Purpose Tool used for each of the following Operations
- leveling the bottom of trenches
- Router plane / old woman tooth
- Planing small through chamfers
- Block plane
