Question 2
;

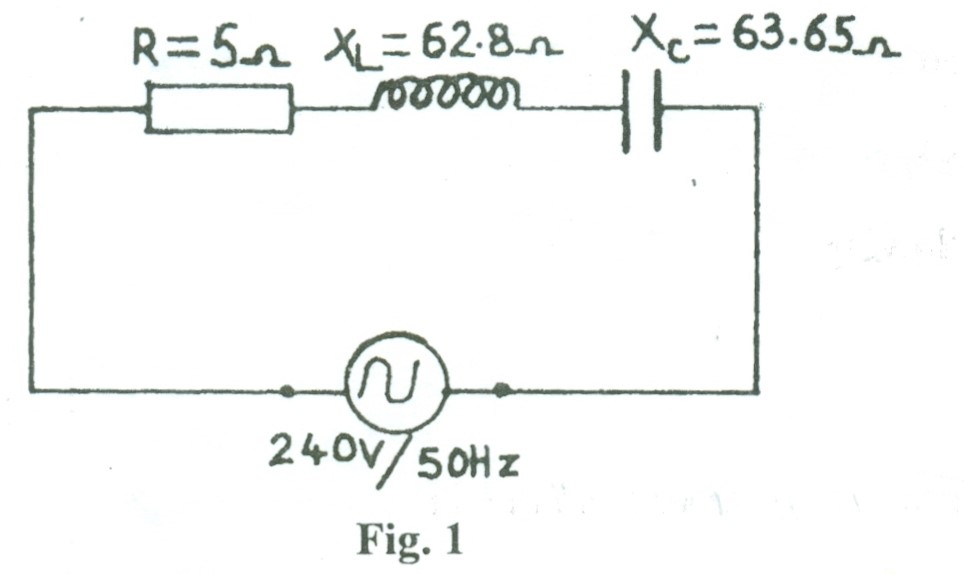

Figure 1 is a series RLC circuit. Calculate the:
(i) impedance of the circuit;
(ii) total current;
(iii) phase angle.
Observation
The expected answers were;
(i) Impedance:
(ii) Total current (I)
= 47.34A

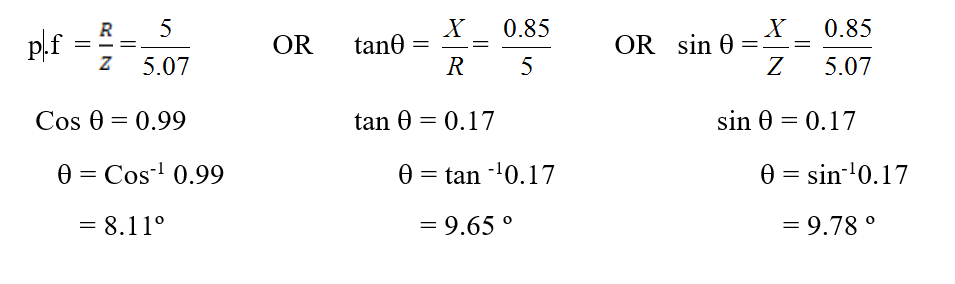

(iii) Phase angle = Cos-1 of power factor
This question is on a series RLC circuit. Candidates performed well in this question.
