Technical Drawing Paper 2, Nov/Dec. 2012
Questions: 1 2 3 4 5 6 7 8 9 10 Section B 1 2 Main
General Comments
Weakness/Remedies
Strength



Question 1

SECTION A (PART 1)

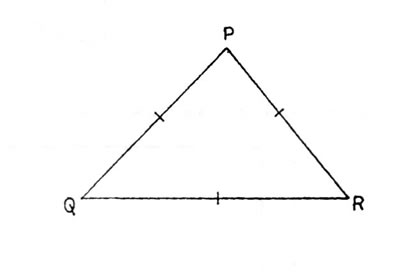

  1. construct three equal circles to touch one another and each side of the

triangle given below.



_____________________________________________________________________________________________________
Observation

Candidates were expected to:

  1. bisect the main angles;
  2. bisect the subordinate angles;
  3. draw bisectors to intersect the main bisection lines;
  4. use the intersection of bisection lines as centre to draw circles;
  5. draw the circles to touch one another and the sides of the triangle.

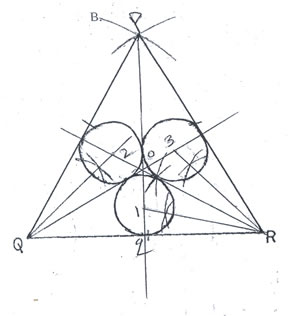

The solution is shown below
