Carpentry and Joinery 2, May/June 2014
Questions: 1 2 3 4 5 6 7 8   Main
General Comments

Question 2

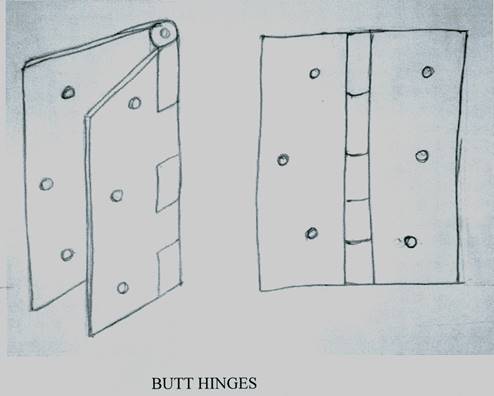

  1. Make a pictorial sketch of a butt hinge.


  1. State one of the uses of the hinge sketched in 2(a)







Most candidates were able to state the use of the butt hinge, however, the sketch of the butt hinge was poorly done.

The expected response to question 2 is as given below:



(b)       -           used for hanging panel or flush doors;
            -           used for hanging lids and doors of cabinets;
            -           used for hanging panel or flush windows.
