Question 5
|
-
Sketch the conventional symbol for each of the following items:
-
single swing door;
-
sawn wood;
-
glass;
-
wood.
|
| _____________________________________________________________________________________________________ |
|
Few candidates were able to sketch the conventional symbols for the given items. However, majority of them produced poor sketches of the given items.

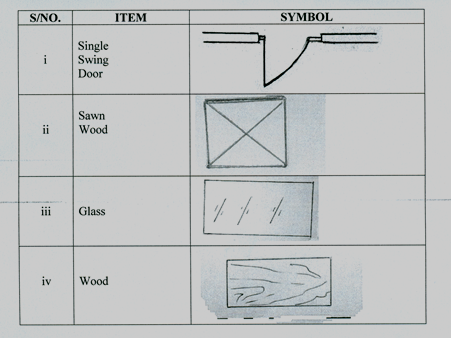

The expected response to question 5 is as given below: |
|
|
|
