Carpentry And Joinery (Paper 2) WASSCE (SC), 2019

Question 7

(a)   calculate the percentage moisture content of a piece of timber which has a wet weight of 45g and dry weight of 40g.

(b)   Draw the plan of each of the following types of roof:
        (i)   gable end;
       (ii)   hipped end.

(c)    Sketch the cross-section of a 3-ply plywood.


Observation

Some candidates were able to:
-     calculate the percentage moisture content of a piece of timber which has a wet weight of 45g and dry weight of 40g;
-     Sketch the cross-section of a 3-ply plywood

However, most of them failed to draw the plan of each of the following types of roof:

  1. gable end;
  2. hipped end.

The expected response to question 7 is as given below:

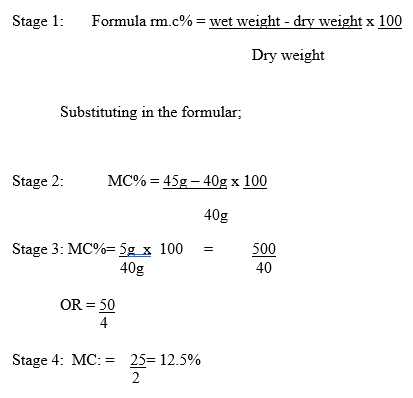

(a)  Calculation of Percentage moisture content of a piece of timber:

Data: wet weight         = 45%
Dry weight                  = 40g

(b)   Drawing the plan of the following:

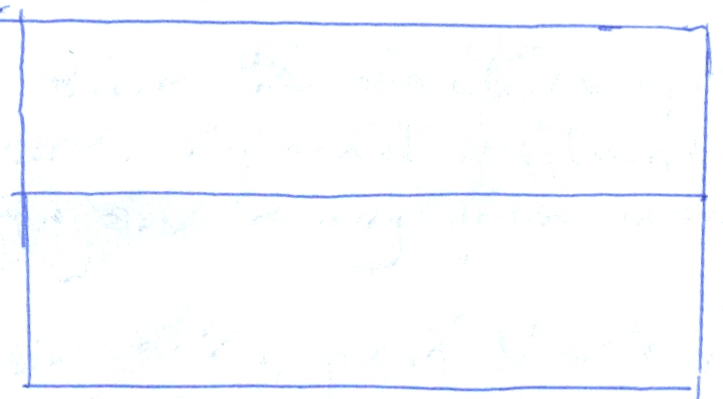

       (i)         gable end roof;

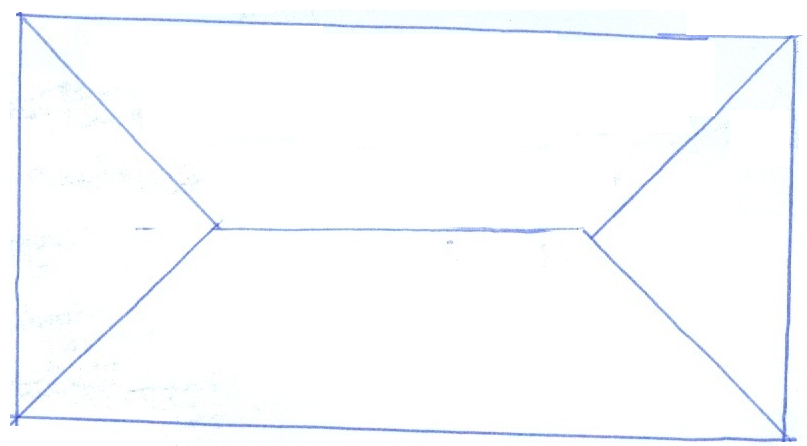

       (ii)        hipped end roof.


(c) Sketch of a cross-section of a 3-ply plywood.
