Technical Drawing Paper 2, Nov/Dec. 2010
Questions: 1 2 3 4 5 6 7 8 9 10 Section B 1 2 Main
General Comments
Weakness/Remedies
Strength



Question 1

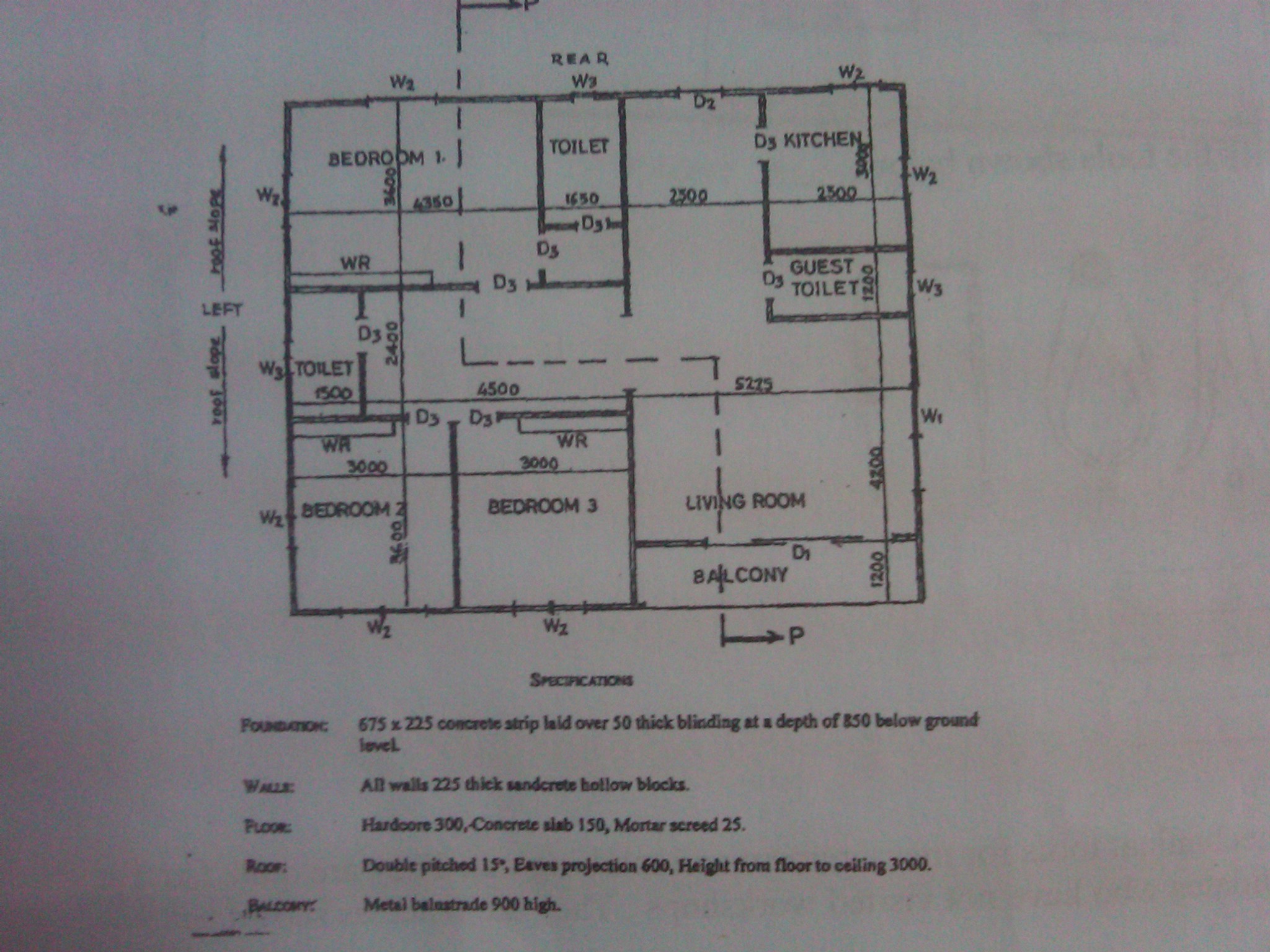

The figure below shows the sketch of a bungalow (all dimension are from face to face of walls ).
study the specifications carefully and answer the questions that follow



DooRs:D1,3000 x 2100 sliding aluminium door and frame.
   D2, 900 x 2100 wooden panel door with 50 x 100 hardwood frame
D3 900 x 2100 wooden flush door with 50 x 100 hardwodd frame;

Windows : All windows are glazed, with aluminium sliding frame
WI - 2400 x 1200
W2 - 1800 x1200
W3- 600 x 600
(Assume suitable dimensions where necessary)

(a) Draw to a scale of I: 100, the following views:

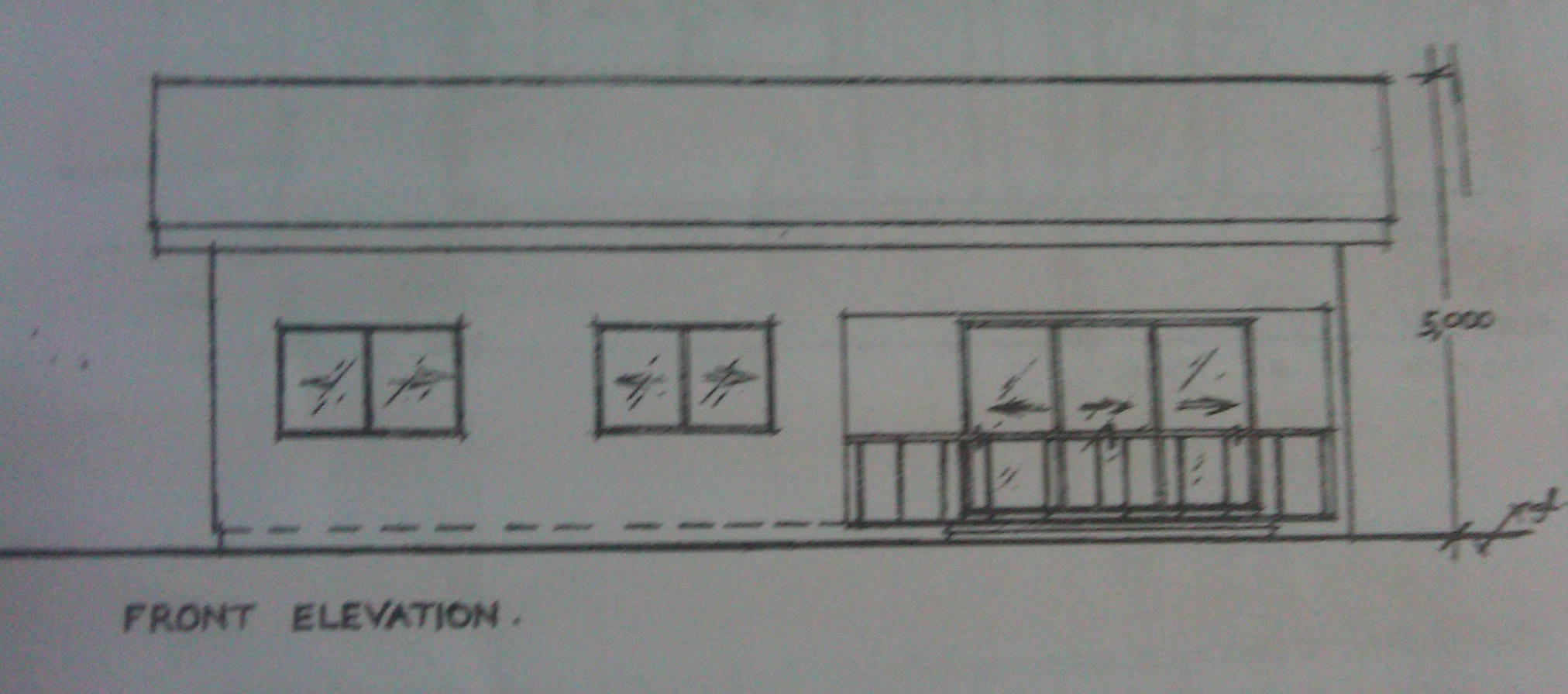

  I           front elevation.

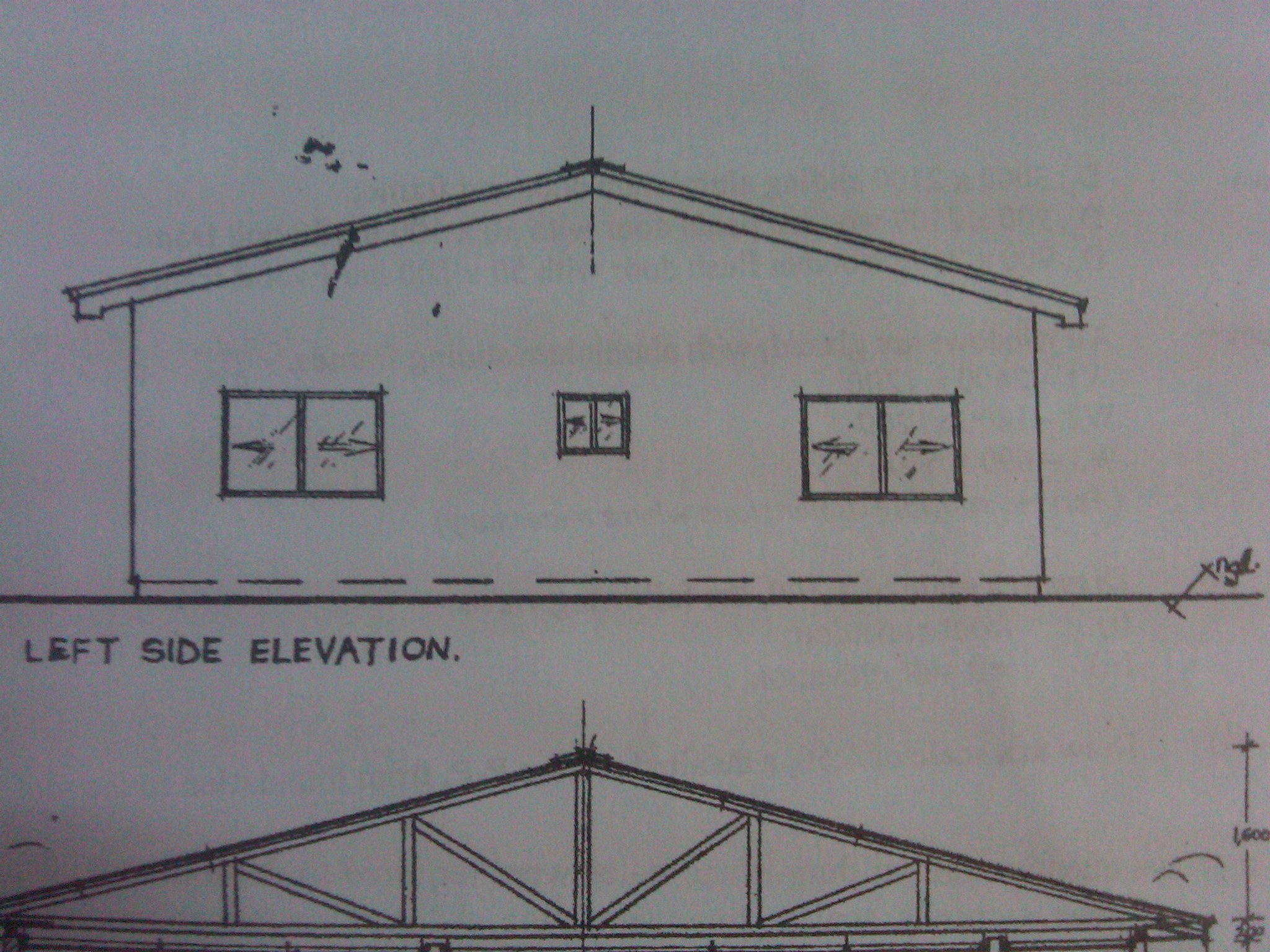

(ii)          left side elevation.

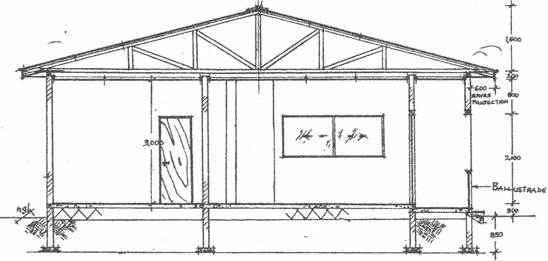

Draw to a scale of 1:50, a detailed section p.p, from foundation to the roof.





.







_____________________________________________________________________________________________________
Observation

This is a practical question on building. Candidates were required to demonstrate their skill in the use of lines, symbols, scales, dimensions, etc. A lot of visualisation was required to represent the given plan and the required front elevation, side elevation and the sectional detail. Working drawing requires a lot of calculations and precise location of elements within the drawing. The required solutions are given below.
