Technical Drawing Paper 2, Nov/Dec. 2010
Questions: 1 2 3 4 5 6 7 8 9 10 Section B 1 2 Main
General Comments
Weakness/Remedies
Strength



Question 8

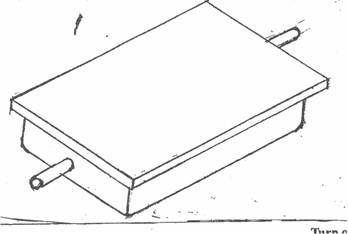

In the space provided below, make a neat pictorial sketch of a surface plate.

.







_____________________________________________________________________________________________________
Observation

The question tested candidates' knowledge of surface plate and how to represent same using free hand. The solution is given below a good number did not draw it correctly
