Question 9

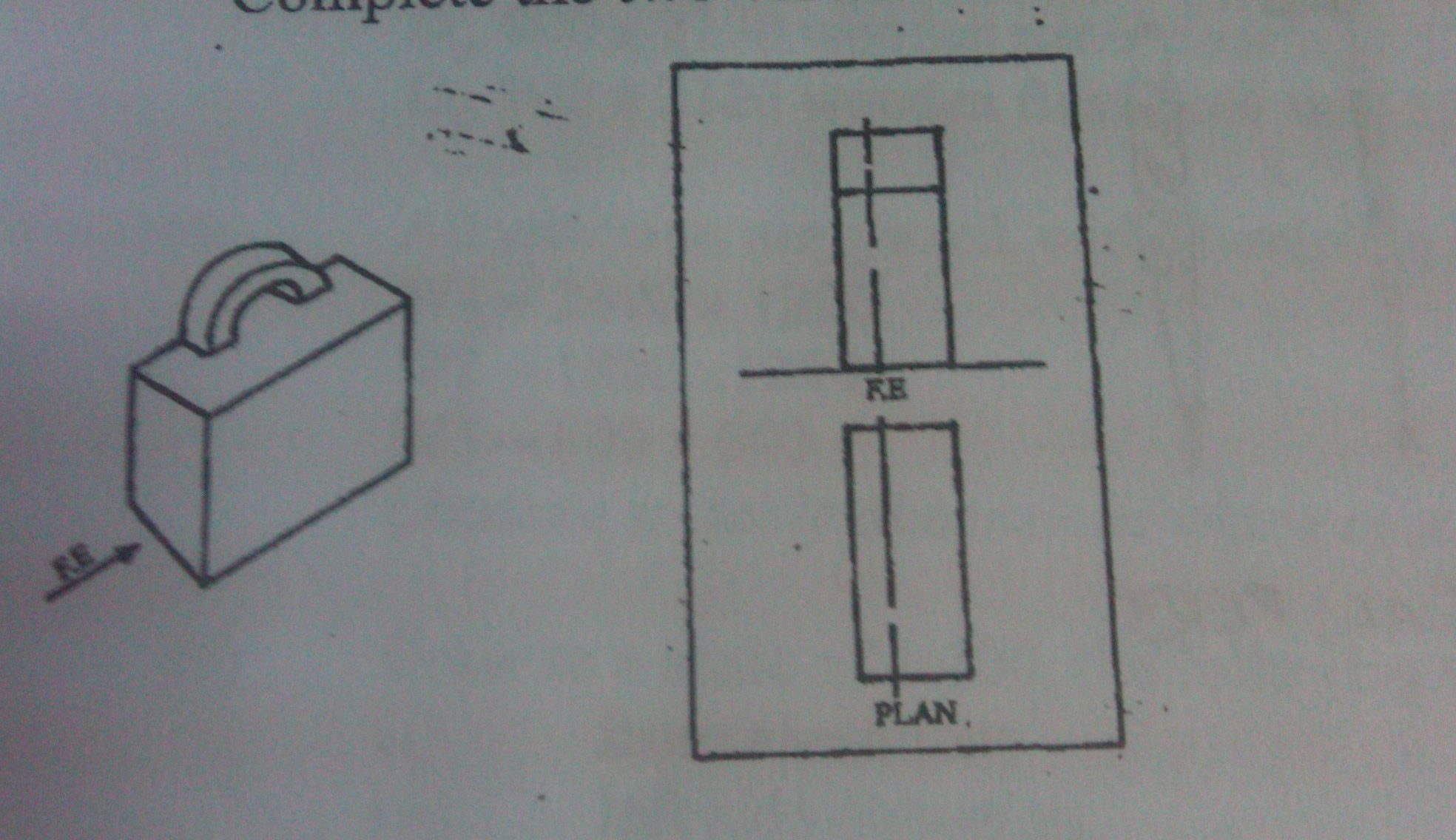

  1. A dust collector (parker) and its two incomplete views are shown below.

Complete the two views.



.







_____________________________________________________________________________________________________
Observation

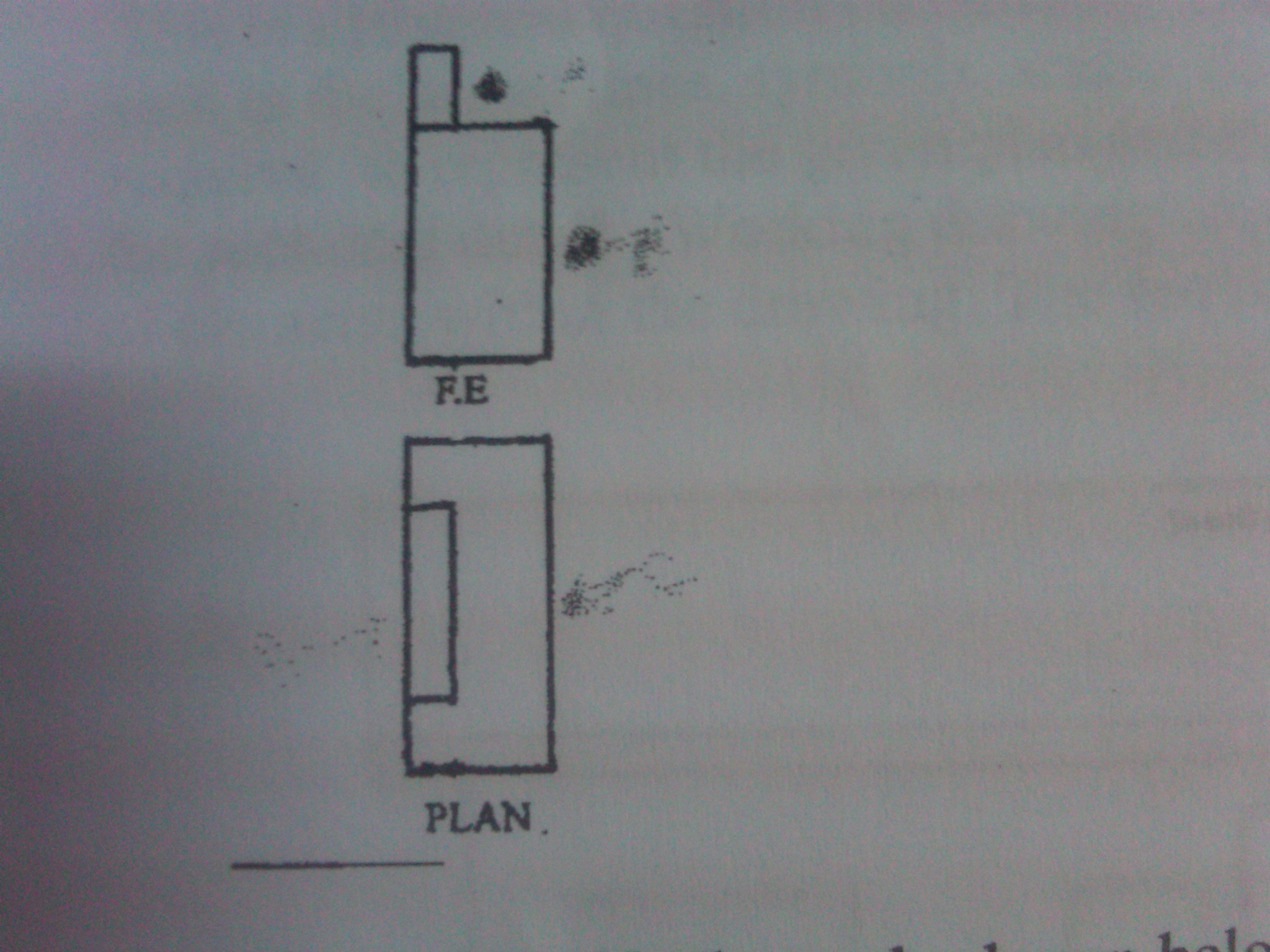

With the aid of the pictorial view on the left side candidates were expected to complete the two views as shown below. A good majority of them got the solution correctly.
