Technical Drawing Paper 2, May/June. 2011
Questions: 1 2 3 4 5 6 7 8 9 10 Section B 1 2 Main
General Comments
Strength
Weakness/Remedies
Question 10

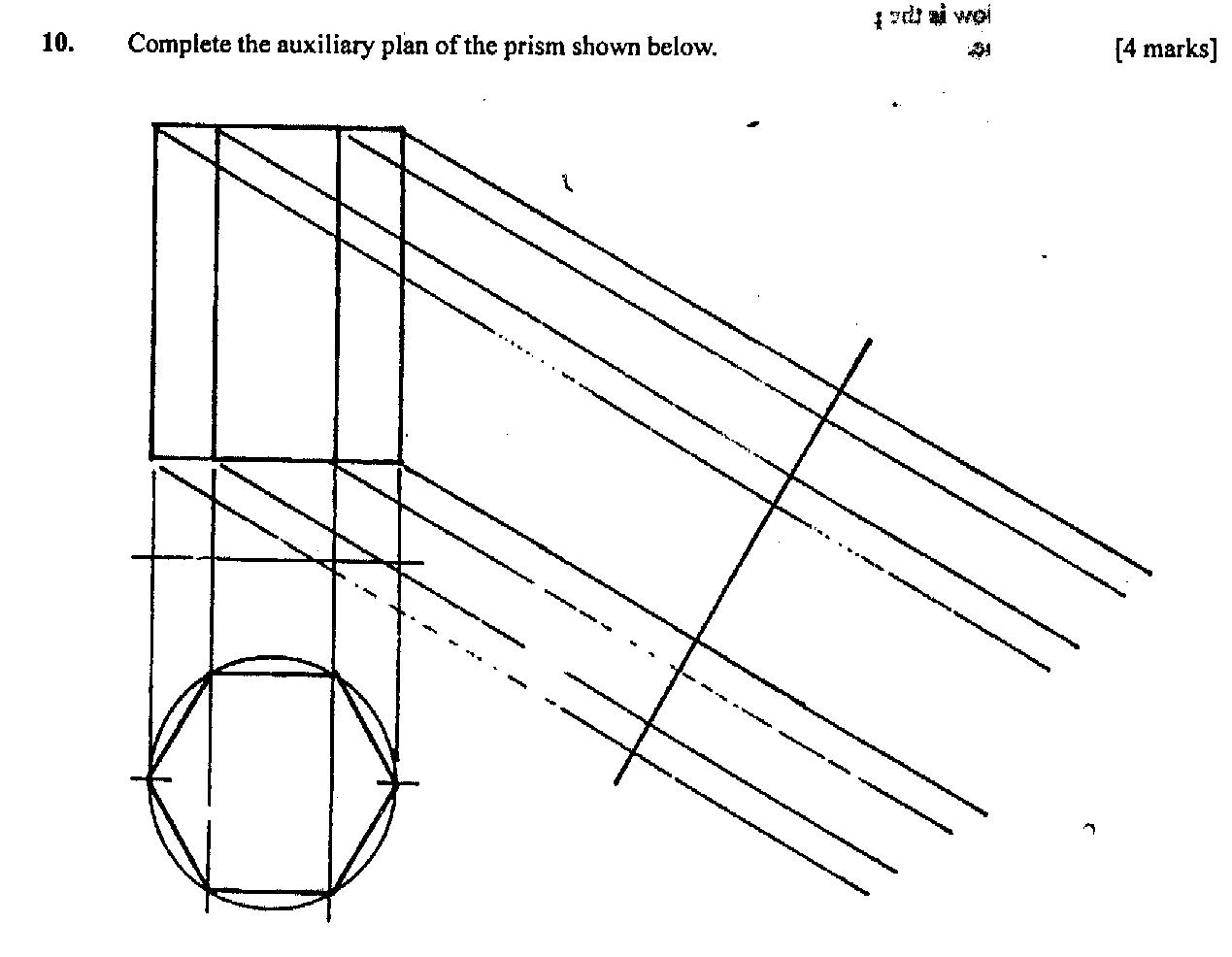

           Complete the auxillary plan of the prism shown below.     [4 marks]

Observation

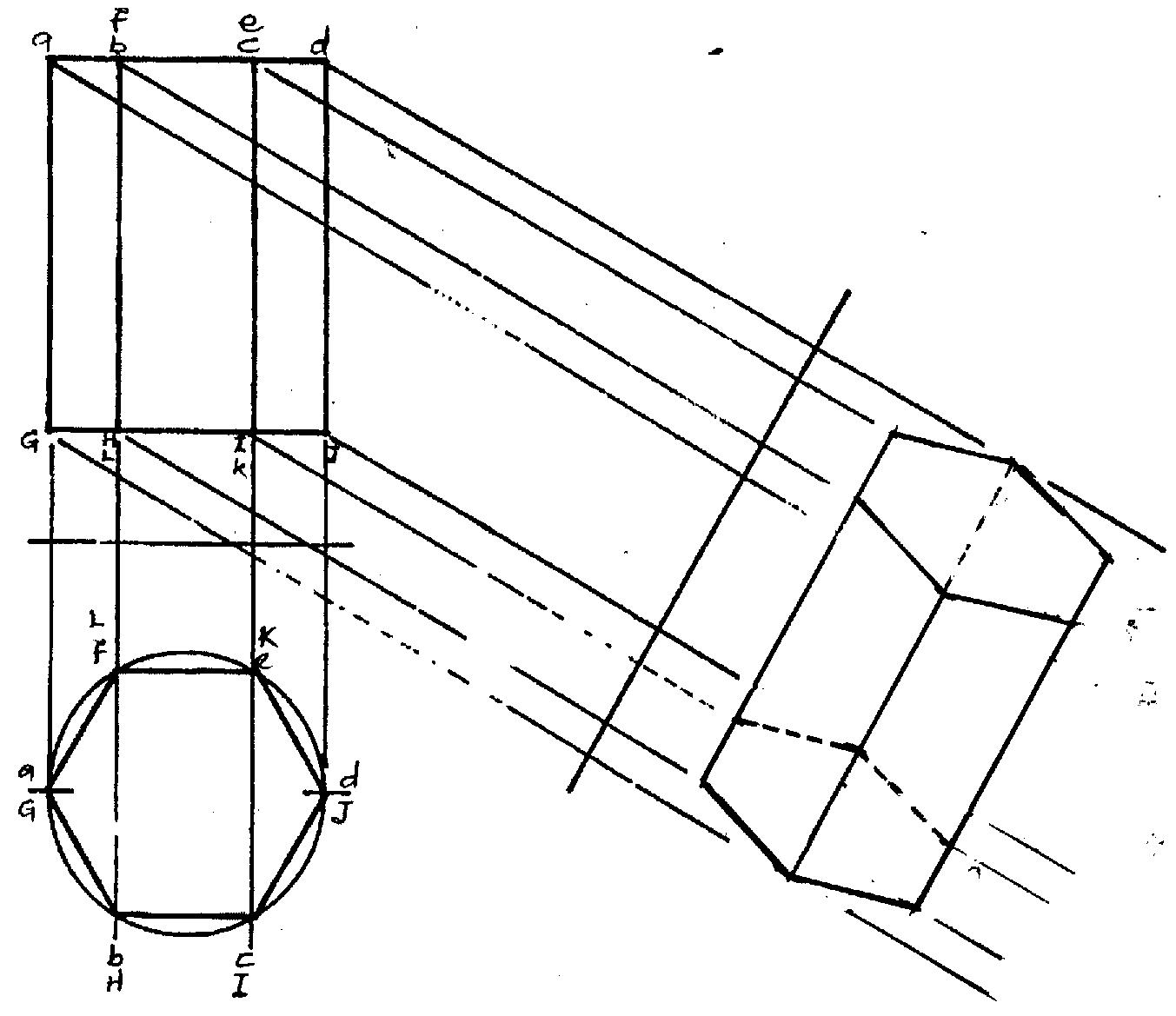

           Candidates were expected  to mark the width of the plan  and transfer the dimensions from
        the plan to the auxiliary plan required as shown below. The candidates performance was average
        here because a lot of them did not realise that they had to transfer dimensions from the plan
