Technical Drawing Paper 2, May/June. 2011
Questions: 1 2 3 4 5 6 7 8 9 10 Section B 1 2 Main
General Comments
Strength
Weakness/Remedies

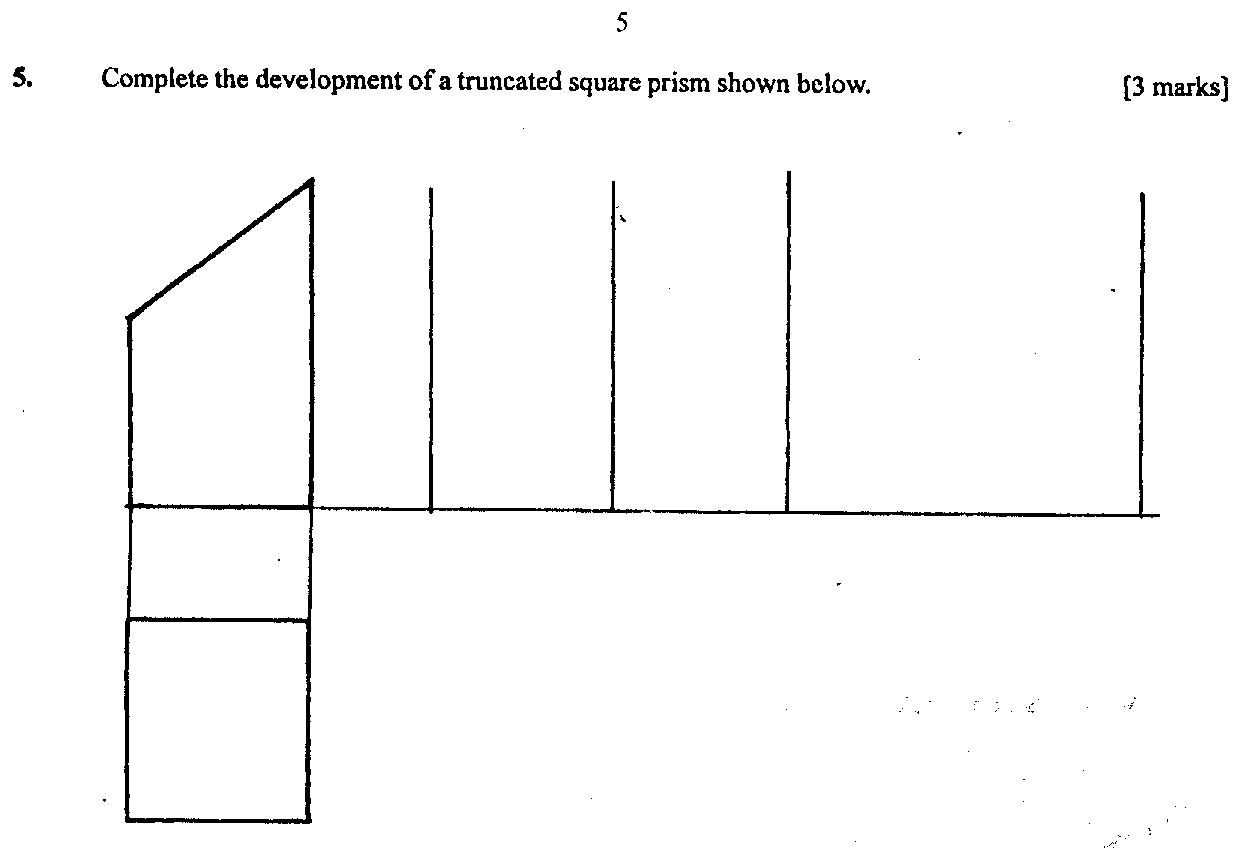

Question 5

           Sketch the conventional symbol for representing the following in the spaces provided


Observation

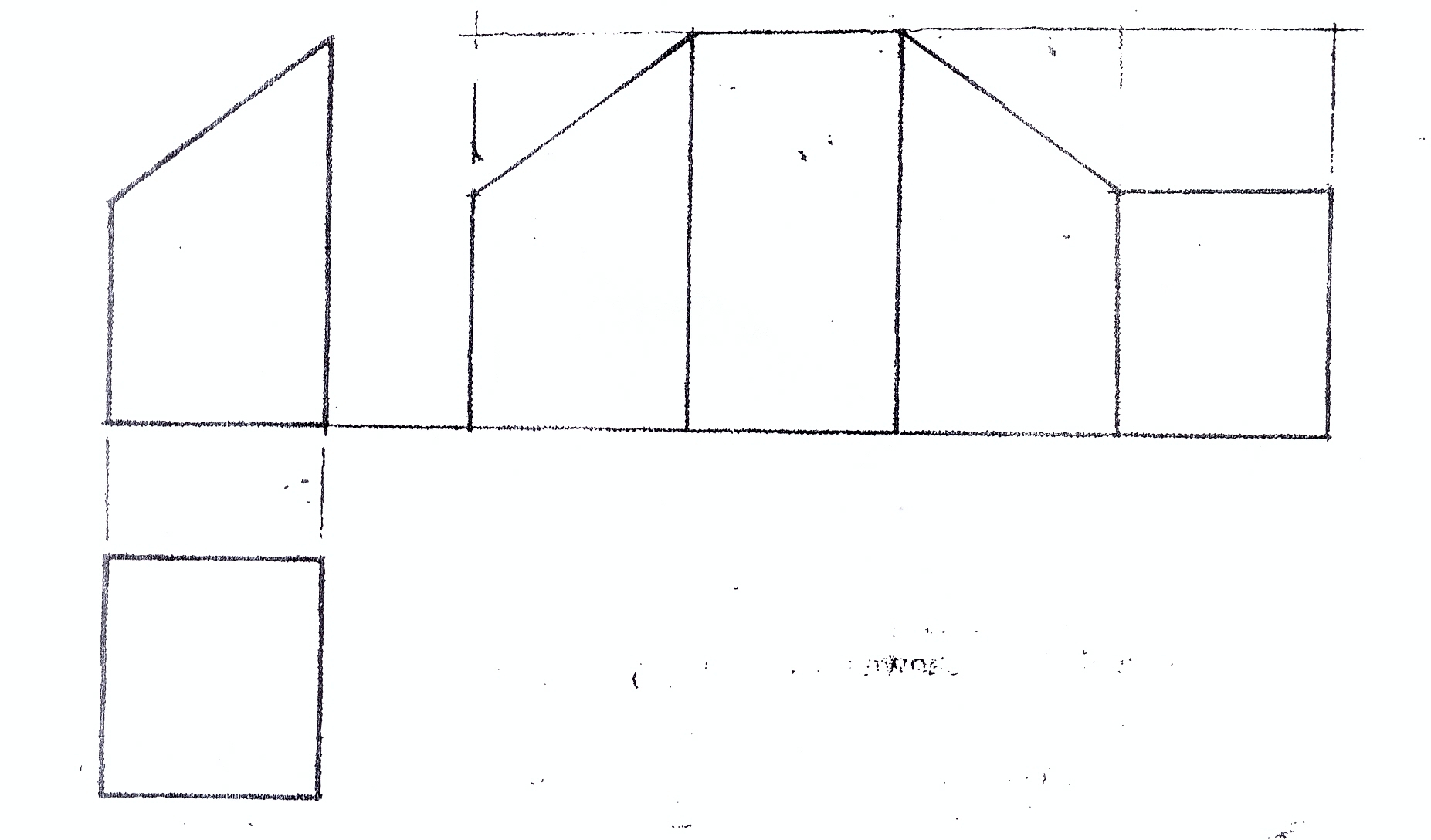

           Candidates were expected to project lines from the elevation to obtain the height of the sides and mark each side from the plan. The solution is given below. A good number of them did very well.
