Technical Drawing Paper 2, May/June. 2011
Questions: 1 2 3 4 5 6 7 8 9 10 Section B 1 2 Main
General Comments
Strength
Weakness/Remedies
Question 8

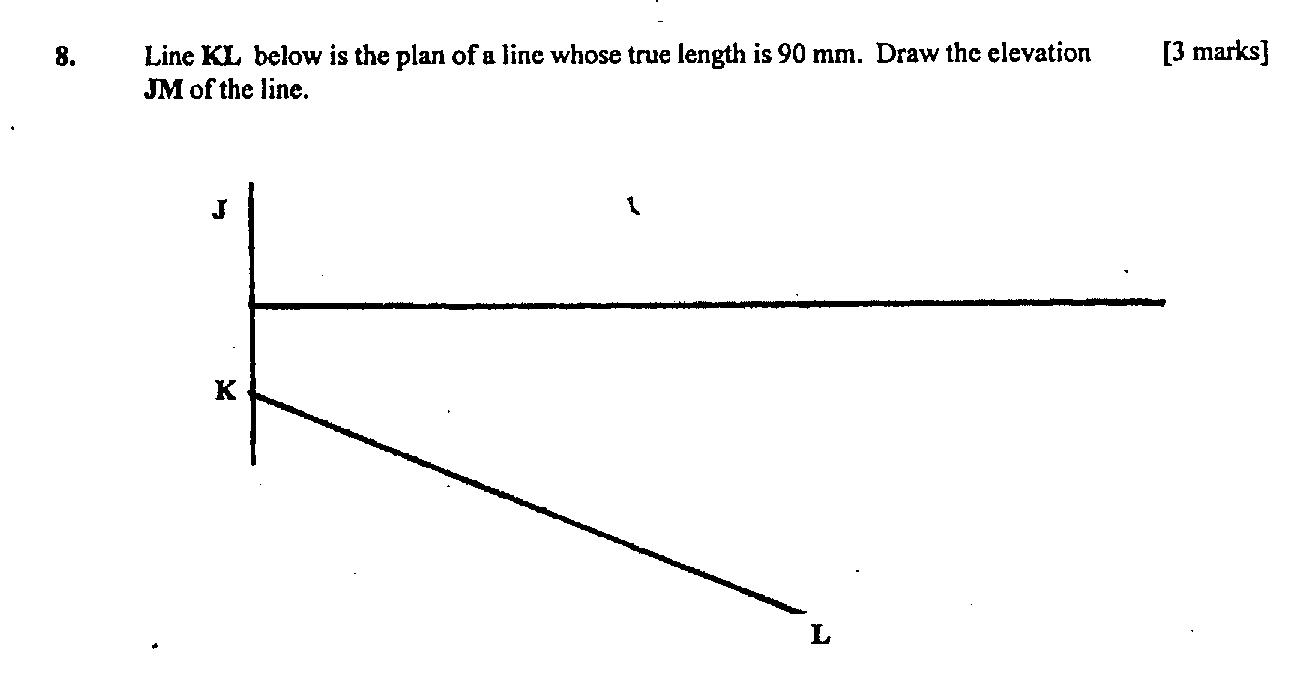

           Line KL below is the plan of a line whose true length is 90 mm. Draw the elevation
            JM of the line.    [3 marks]

Observation

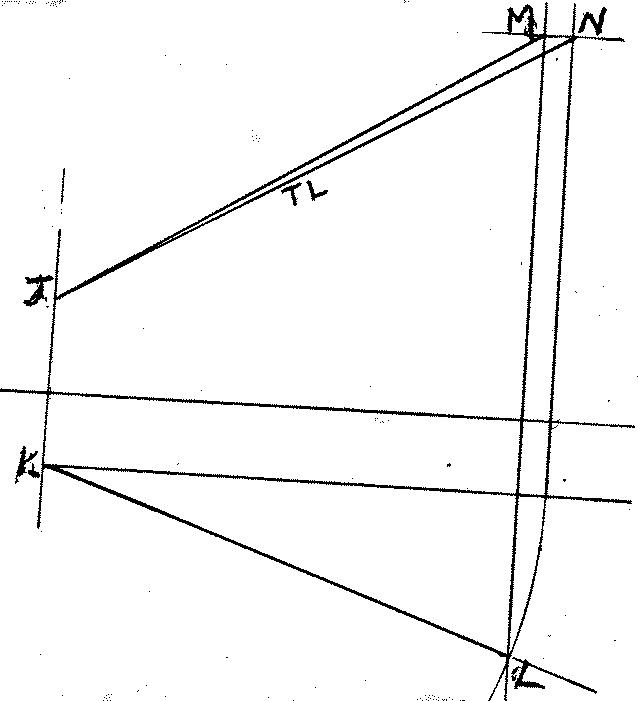

            Candidates were required to draw horizontal line from K and draw an arc
        using KL to cut the horizontal line. Produce the line to point N, then joining
        JN . the solution is shown below
