Technical Drawing Paper 2, May/June. 2011
Questions: 1 2 3 4 5 6 7 8 9 10 Section B 1 2 Main
General Comments
Strength
Weakness/Remedies
Question 2

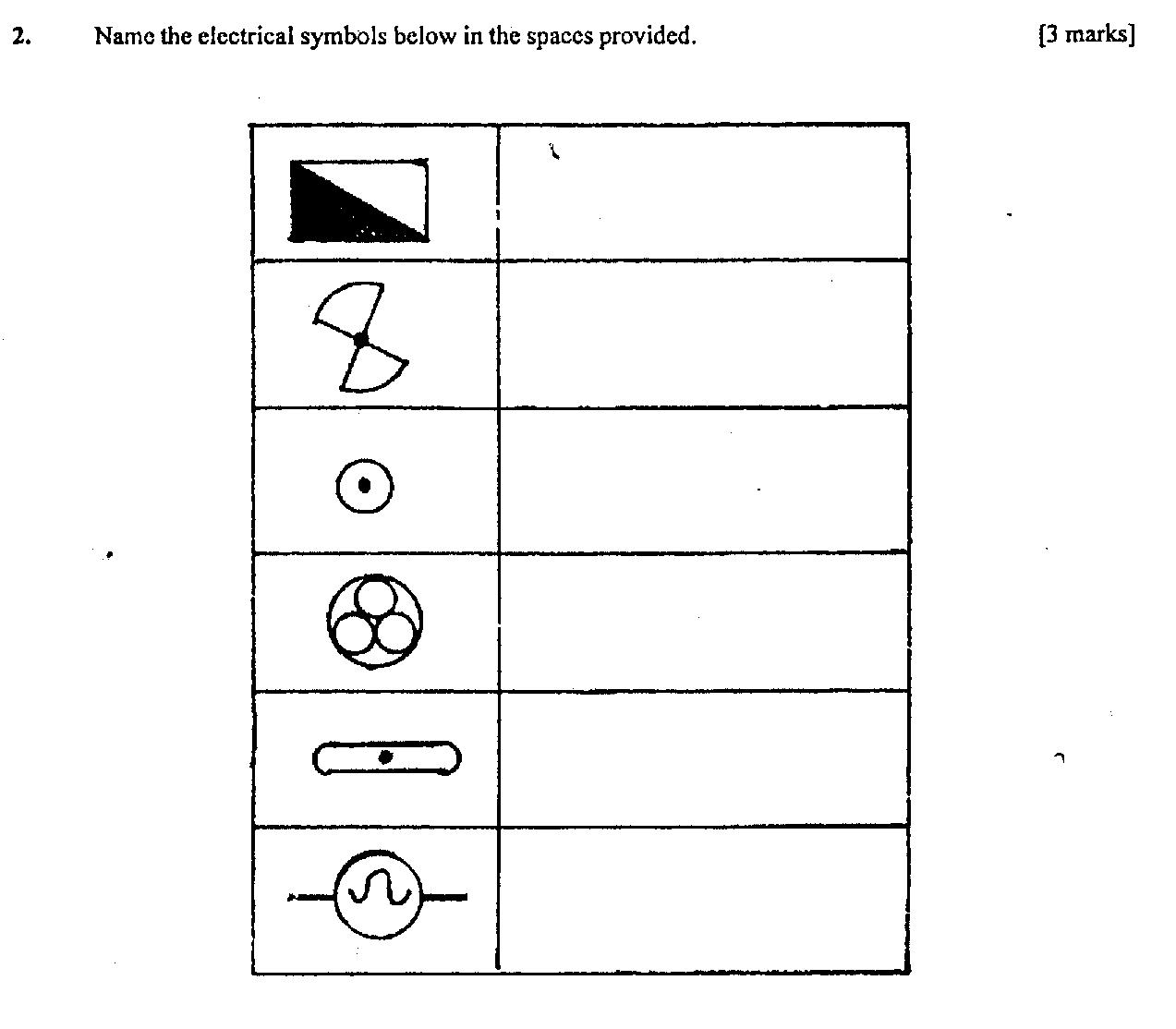

           Name the electrical symbols below in the sapces provided

Observation
                      Identification of symbol is an important aspect of technical communication.

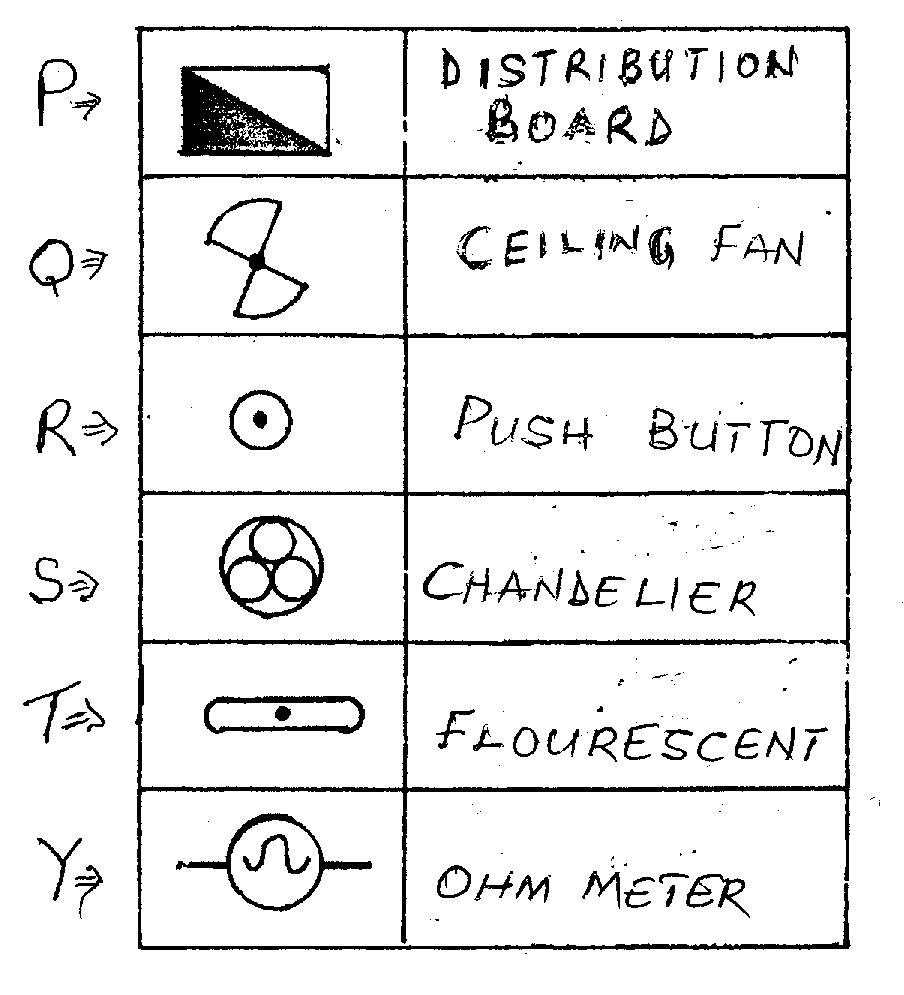

         Candidates should be familiar with different symbol. The solution is shown below.
