Technical Drawing Paper 2, May/June. 2011
Questions: 1 2 3 4 5 6 7 8 9 10 Section B 1 2 Main
General Comments
Strength
Weakness/Remedies
Question 9

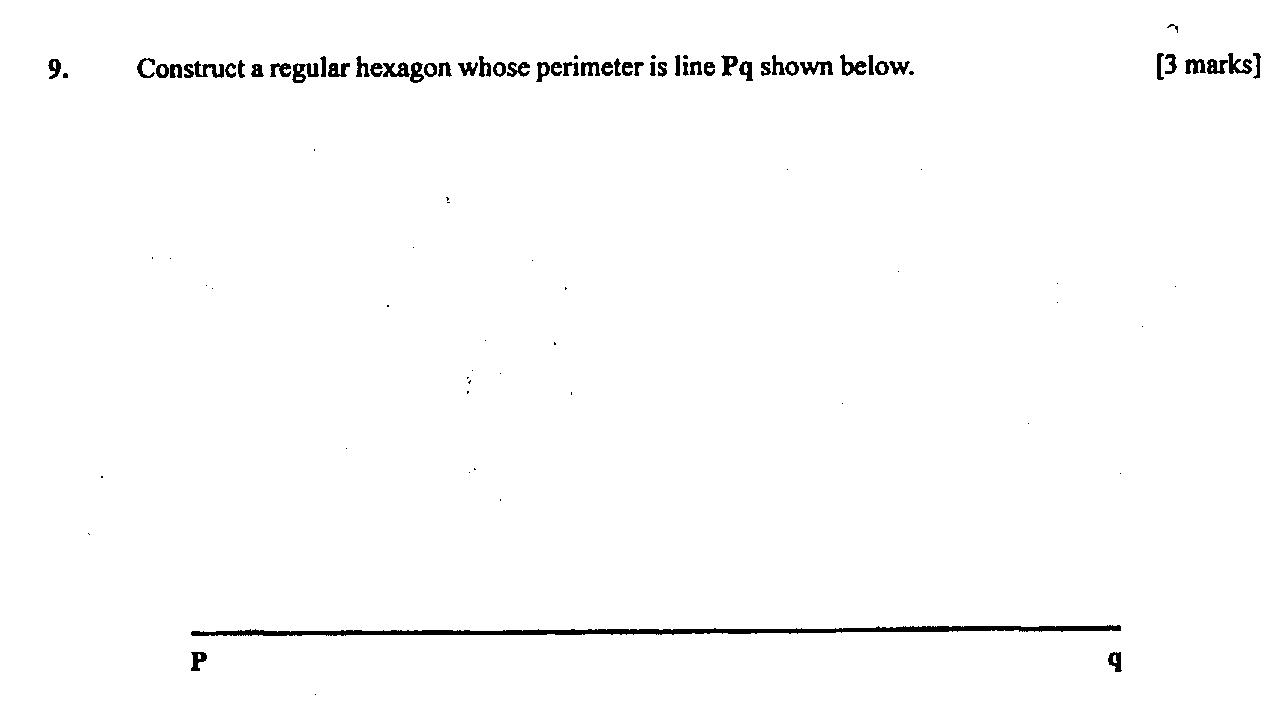

           Construct a regular hexagon whose perimeter is line PQ shown below.     [3 marks]

Observation

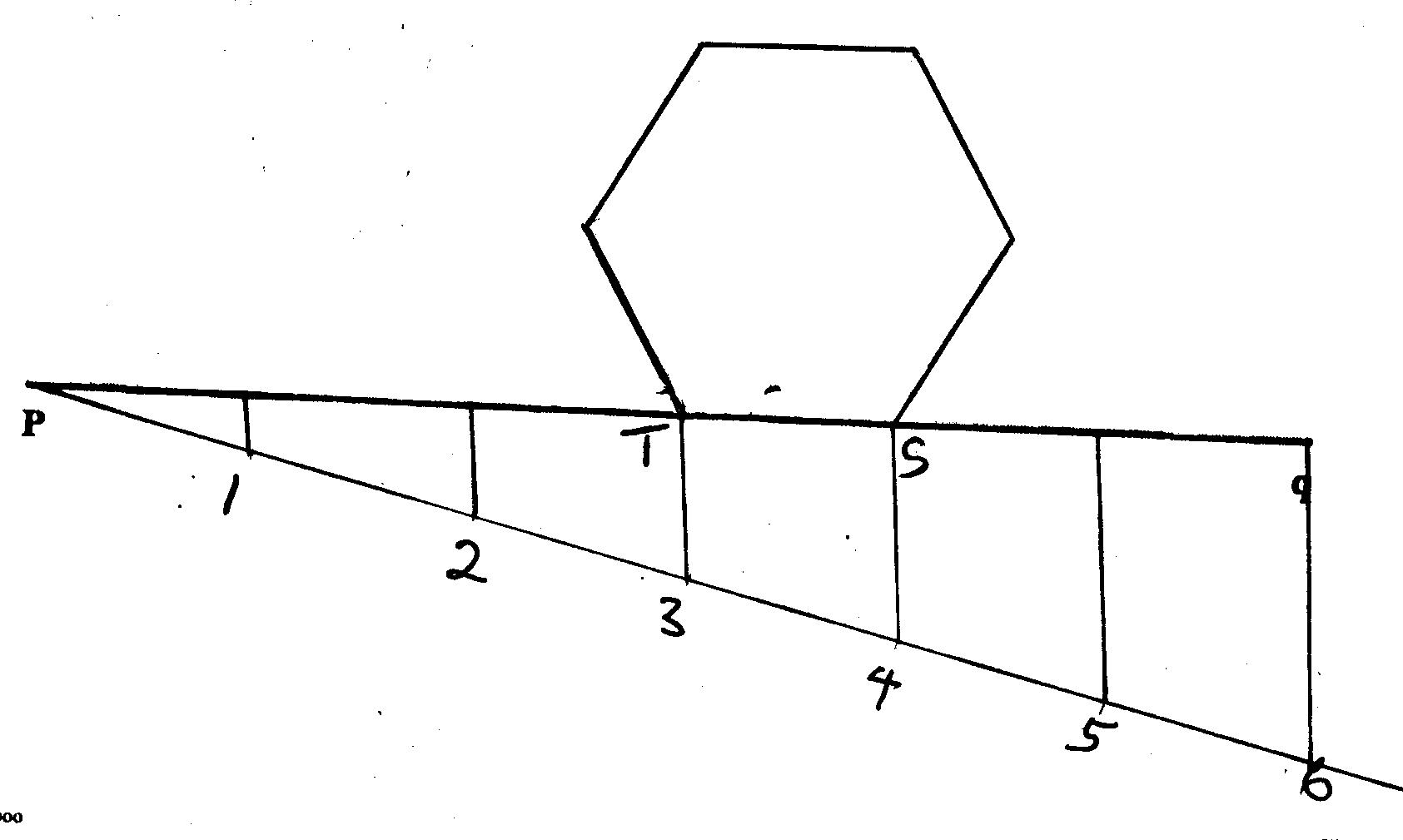

                      Candidates were expected to divide the line pq into six equal parts.  Taking TS as
        the base of the hexagon mark off other points to form the hexagon as shown below.
        Most of the candidates did very well in the question .
