Technical Drawing Paper 2, May/June. 2011
Questions: 1 2 3 4 5 6 7 8 9 10 Section B 1 2 Main
General Comments
Strength
Weakness/Remedies
Question 7

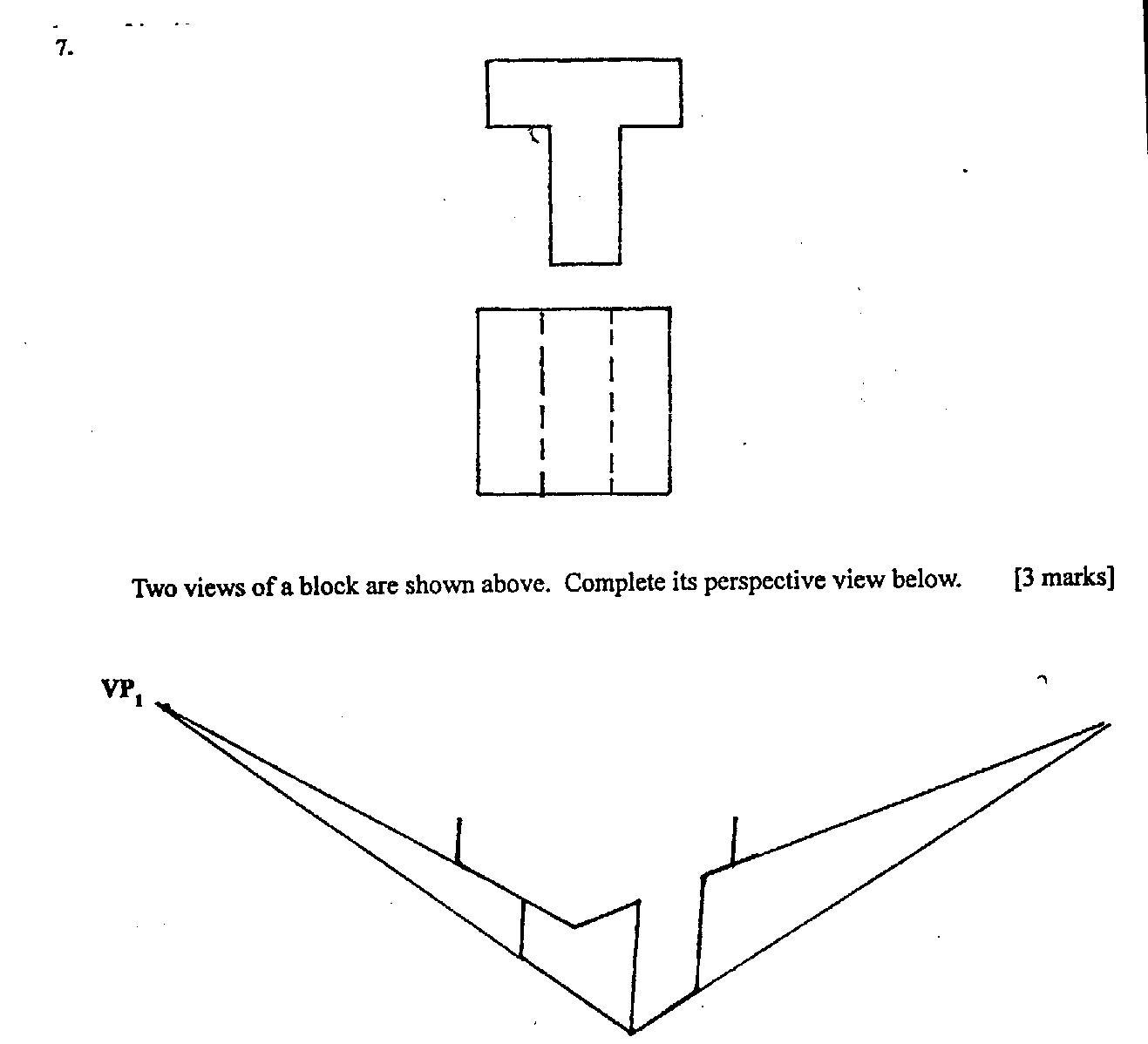

           Two views of a block are shown above. Complete its perspective view. [3 marks]

Observation
            Candidates were required to draw two lines from VP1 to complete the plan and two lines
          from VP2 to complete the elevation. Most of the candidates did not do well in the question

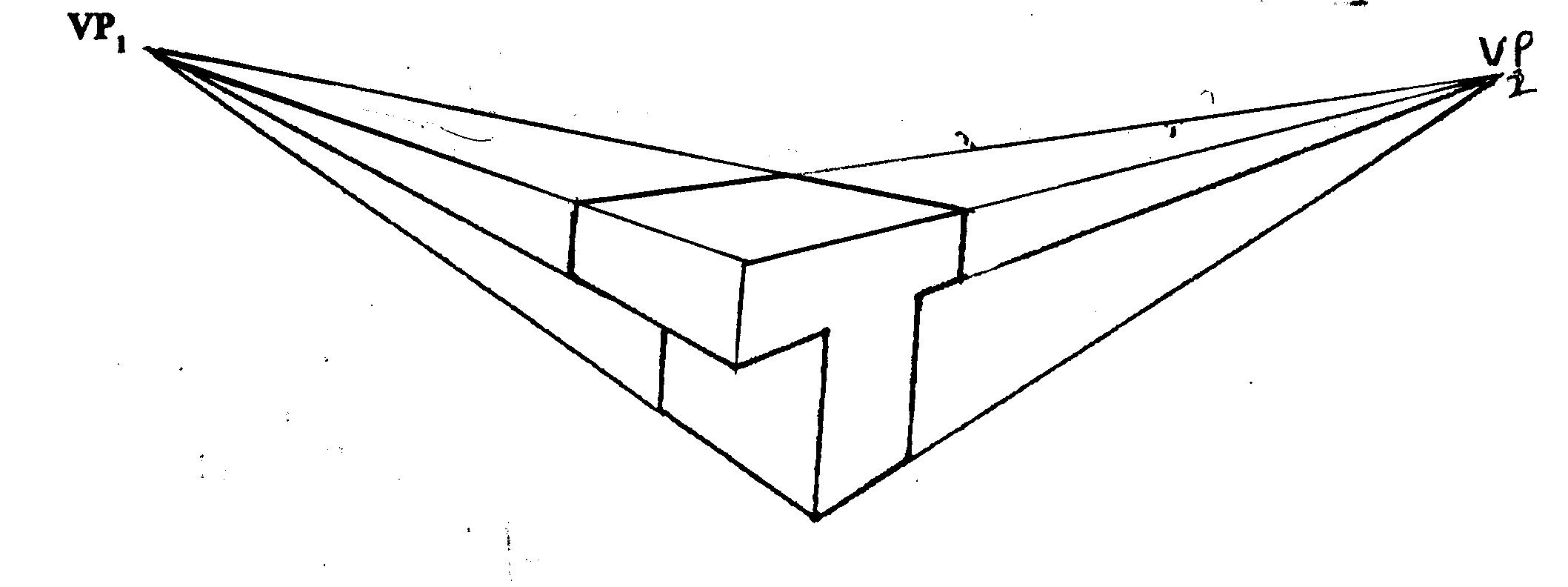

          because they did not start from the right point as shown in the solution below.
