Technical Drawing Paper 2, Nov/Dec. 2013
Questions: 1 2 3 4 5 6 7 8 9 10 Section B 1 2 Main
General Comments
Weakness/Remedies
Strength



Question 3

SECTION A (PART 1)

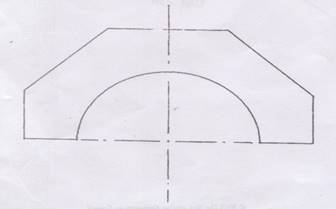

The figure below shows half of an octagonal bearing.  Complete the full bearing.



_____________________________________________________________________________________________________
Observation

Candidates were expected to:

  1. produce lines QP and TX;
  2. mark lengths QP and TX on extension starting from P and X;
  3. make lengths QR and ST to cut Q at R and T1 at S1 to give  R1, S1;
  4. extend the circle line downwards;
  5. step KO down from O;
  6. join P1 X1 with an arc.

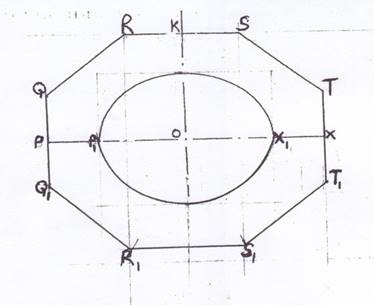

The solution is shown below.
