Technical Drawing Paper 2, Nov/Dec. 2013
Questions:
1
2
3
4
5
6
7
8
9
10
Section B
1
2
Main
General Comments
Weakness/Remedies
Strength
Question 9
Make freehand pictorial sketches of the following tools in the spaces provided below.
_____________________________________________________________________________________________________
Observation
Candidates were expected to:
Try square
sketch the stock;
sketch the blade;
draw to proportion.
Scriber
sketch the knurled portion;
sketch the scribing points;
draw to proportion.

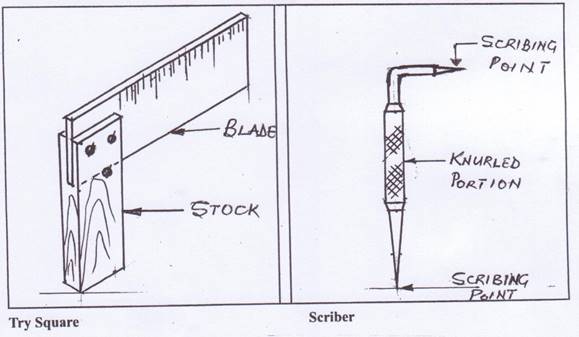

The solution is shown below
