Technical Drawing Paper 2, Nov/Dec. 2013
Questions: 1 2 3 4 5 6 7 8 9 10 Section B 1 2 Main
General Comments
Weakness/Remedies
Strength



Question 4

SECTION A (PART 1)

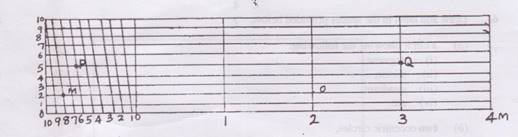

  1. What is the type of scale in the figure above?
  1. State the length of



  1. PQ ………………………………
  1. MO ………………………………



_____________________________________________________________________________________________________
Observation

Candidates were expected to:

  1. write diagonal scale;
  2. state length PQ as 3.65m;
  3. state length MO as 2.82m.



The solution is stated below.

  1. diagonal scale



  1. (i)         3.65m

(ii)        2.82m
