Technical Drawing Paper 2, Nov/Dec. 2013
Questions: 1 2 3 4 5 6 7 8 9 10 Section B 1 2 Main
General Comments
Weakness/Remedies
Strength



Question 7

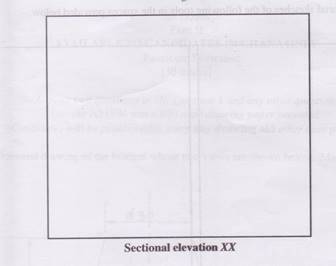

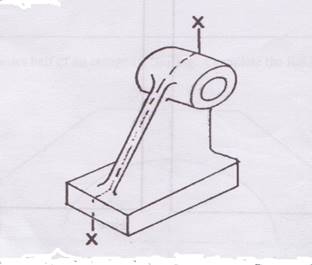

            The isometric view of a bracket is shown above with a cutting plane XX. Sketch the
sectional elevation in the space provided below















_____________________________________________________________________________________________________
Observation

Candidates were expected to:

  1. draw the correct view;
  2. section the base;
  3. section concentric circles.

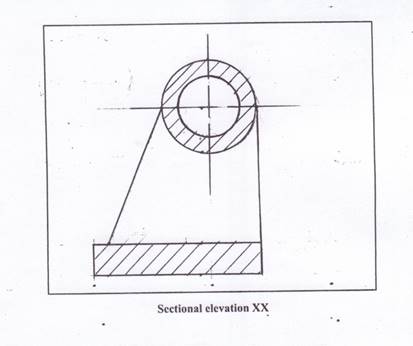

The solution is shown below
