Question 4
|
Question 4
To a scale of 1:25, draw the schedule for the doors and windows.
|
_____________________________________________________________________________________________________ |
|
Majority of the candidates were able to:
- show the diagrams for different types of doors and windows specified;
- describe the doors, and windows, materials and sizes.
However, they failed to prepare the schedule using the conventional format based on the following sub-headings:
- diagram;
- type;
- size;’
- description;
- quality.

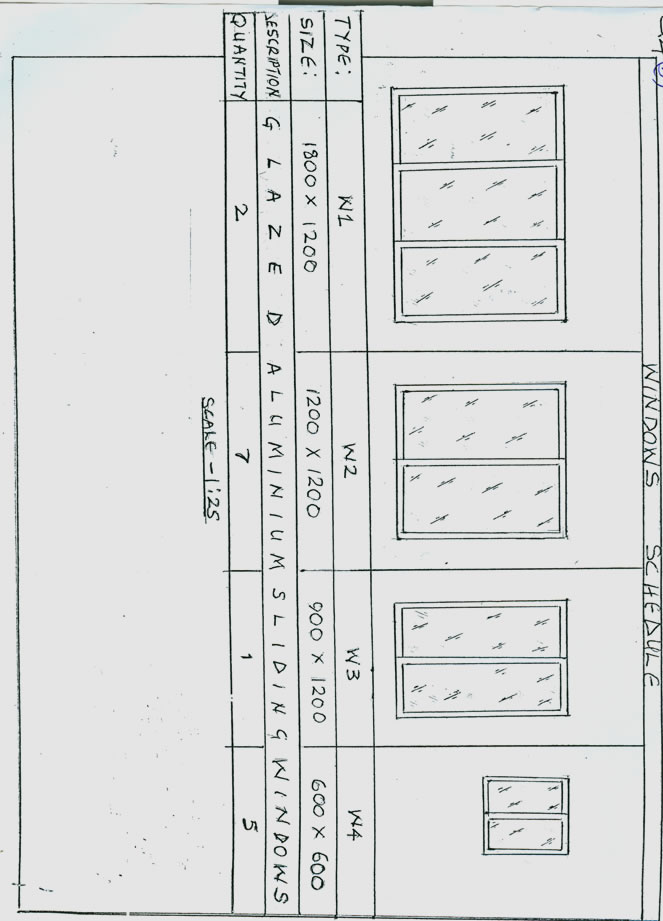

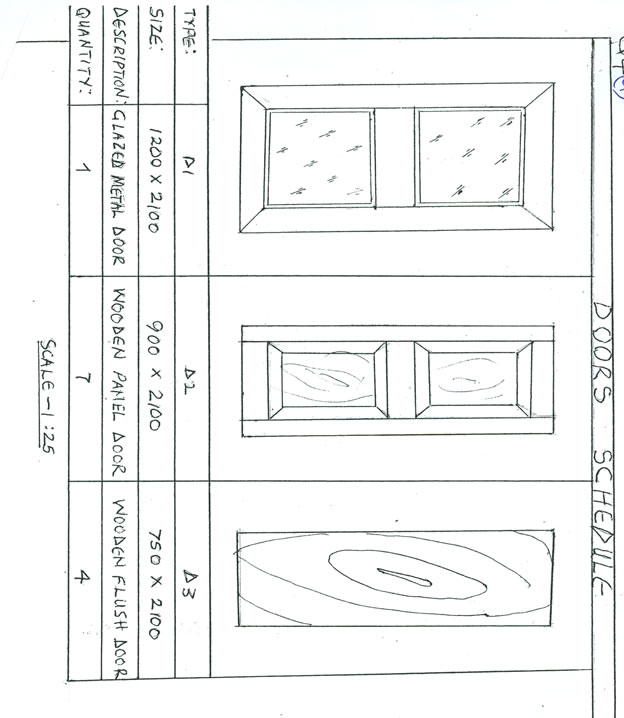

The expected response to question 4 is as shown below:


|
|
|
|
