building construction Paper 3 WASSCE (SC), 2016

Question 2

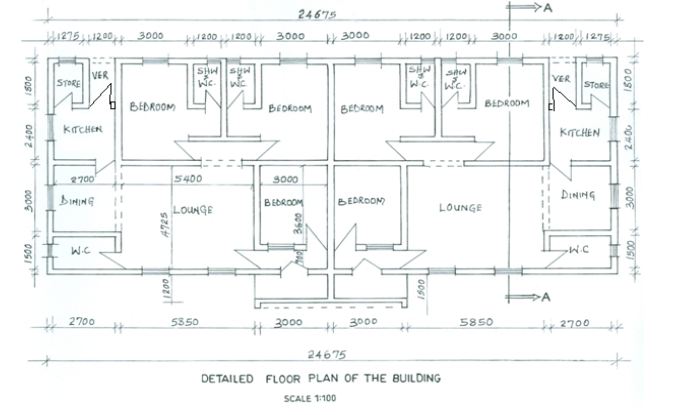

  • Draw to a scale of 1:100, the detailed floor plan of the building

  • Observation

    It is impressive to note that many of them succeeded in:

    -           laying-out properly, both the internal and external walls at the corners and junctions;
    -           labelling correctly, the various room (spaces) on the floor plan.

    However, few of them failed to:

    -           draw the plan to scale 1:100 as specified;
    -           dimension the drawing;
    -           show the doors positions with the conventional symbols;
    -           include the sectional line A – A.
