building construction Paper 3 WASSCE (SC), 2016

Question 4

  • Draw to a scale of 1:25, the door and window schedules.

  • Observation

    Majority of them did well by:

    -           preparing the schedules in accordance with the conventional format;
    -           describing correctly, the various doors and window required;
    -           indicating the appropriate sizes of the doors and windows.

    However, many of them failed to:

    -           state the qantity of each door and window type required;
    -           draw the doors and windows to scale 1:25 as specified;
    -           dimension the doors and windows;
    -           represent the doors and windows with appropriate symbols.

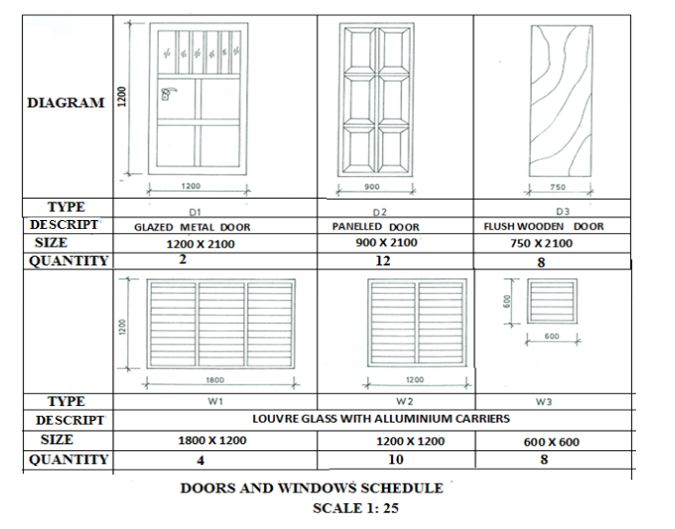

    The expected response to question 4 is as given below:
