Question 3
To a scale of 1:100, draw the following views of the building:
(a) front elevation (north view);
(b) right-side elevation (east view).
Observation
A good number of candidates could not:
- distinguish the ground level from the floor level;
- draw the correct type of doors and window required for example (parellel door shown
instead of glazed metal door; glazed aluminium sitting window instead of louvre glass window);
- draw the 900 mm high metal balustarde at the porch.

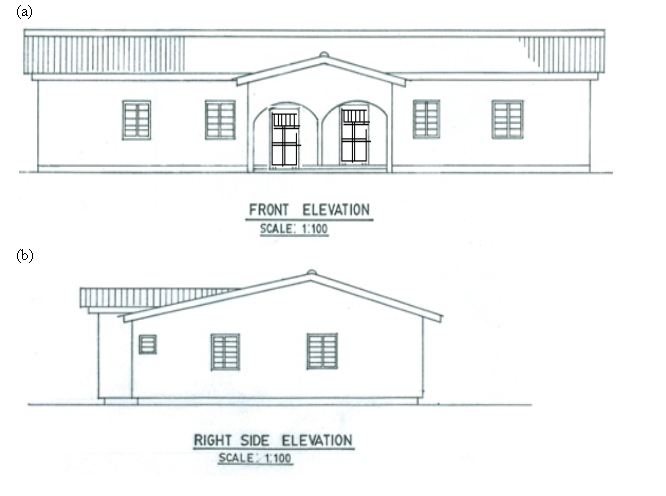

The expected response to question 3 is as given below:
