Technical Drawing Paper 2, May/June. 2013
Questions: 1 2 3 4 5 6 7 8 9 10 Section B 1 2 Main
General Comments
Strength
Weakness/Remedies
Question 1 SECTION A (PART 1)

       Make a freehand sketch of a wooden mallet in the space provided.
Observation

Candidates were expected to:

  1. draw without using any drawing instrument;
  2. draw the mallet showing at least 6 faces;
  3. draw neatly;
  4. show the conventional symbol for wood to indicate that it is a wooden mallet.

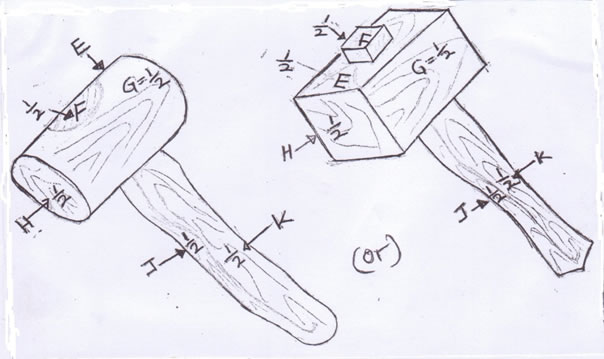

The solution is shown below:
