Question 9 SECTION A (PART 1)

Make a freehand sketch of the profile of an isometric vee-thread in the space provided. Indicate the crest and thread angle

Observation

Candidates were expected to:

  1. draw a freehand sketch of the profile of an isometric vee thread;
  2. identify crest and thread angle.

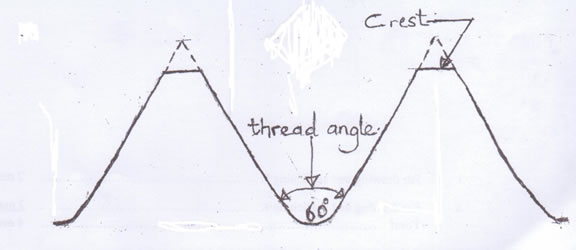

The solution is shown below:
