Technical Drawing Paper 2, May/June. 2013
Questions: 1 2 3 4 5 6 7 8 9 10 Section B 1 2 Main
General Comments
Strength
Weakness/Remedies
Question 6 SECTION A (PART 1)

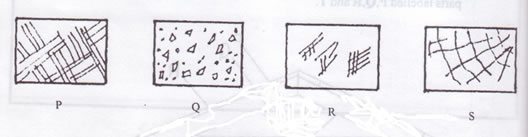

Name the material symbols shown in the figure below in the spaces provided


Observation

Candidates were expected to:

  1. name (P) as earth;
  2. name (Q) as concrete;
  3. name (R) as file;
  4. name (S) as wood or timber.

The solution is shown below:

P ------------------------- Earth;
Q ------------------------  Concrete;
R ------------------------- File;
S ------------------------- Wood.
