Question 3 SECTION A (PART 1)



Construct an inscribed octagon in the square provided.


Observation

Candidates were expected to:

  1. draw the two diagonals;
  2. draw the four arcs;
  3. join end of the four arcs.

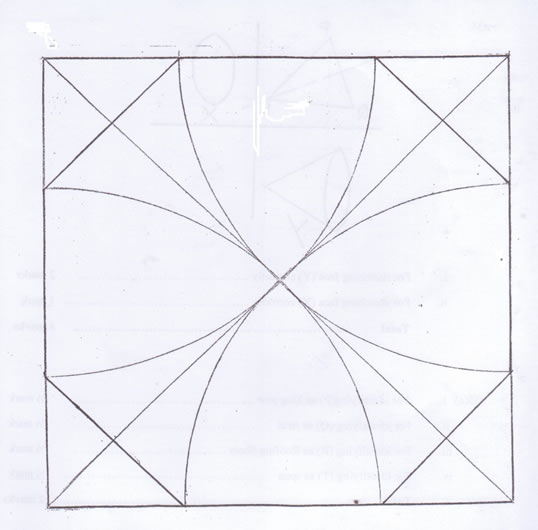

The solution is shown below:
