Technical Drawing Paper 2, May/June. 2013
Questions: 1 2 3 4 5 6 7 8 9 10 Section B 1 2 Main
General Comments
Strength
Weakness/Remedies
Question 8 SECTION A (PART 1)

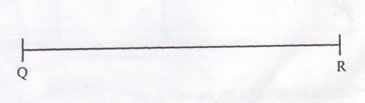

Line QR is the hypotenuse of a right-angled triangle QRS and RS is 30º.  Complete the construction of the triangle.


Observation

Candidates were expected to:

  1. draw an arc from (R);
  2. construct and bisect 60º at R;
  3. construct 60º at Q;
  4. draw lines at (R) and (Q) to obtain a perpendicular at (S).

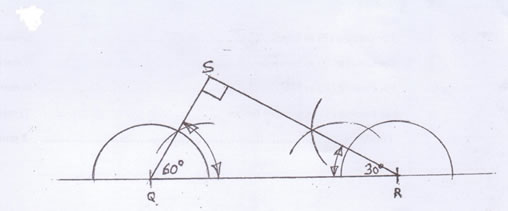

The solution is shown below:
