Technical Drawing Paper 2, May/June. 2013
Questions: 1 2 3 4 5 6 7 8 9 10 Section B 1 2 Main
General Comments
Strength
Weakness/Remedies
Question 4 SECTION A (PART 1)

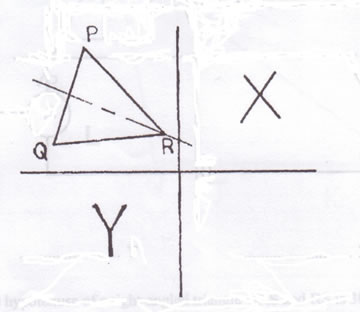

A right cone lies on one of its sides as shown in the figure below.  Sketch the views X and Y on the cone in the spaces provided.


Observation

Candidates were expected to:

  1. sketch view X correctly in the space provided;
  2. sketch view Y correctly in the space provided;
  3. sketch neatly.

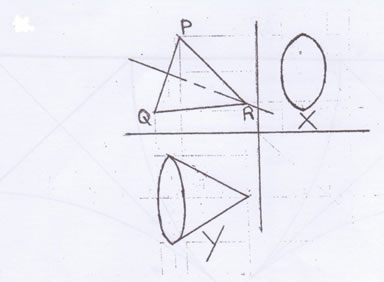

The solution is shown below:
